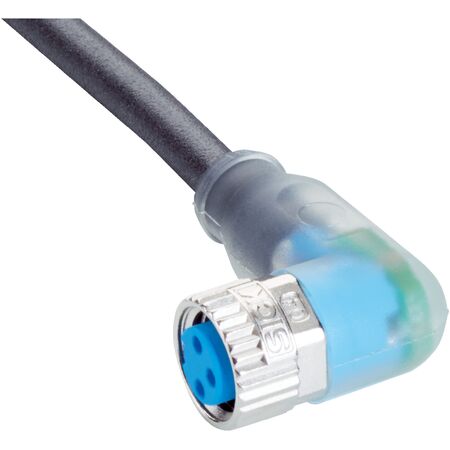

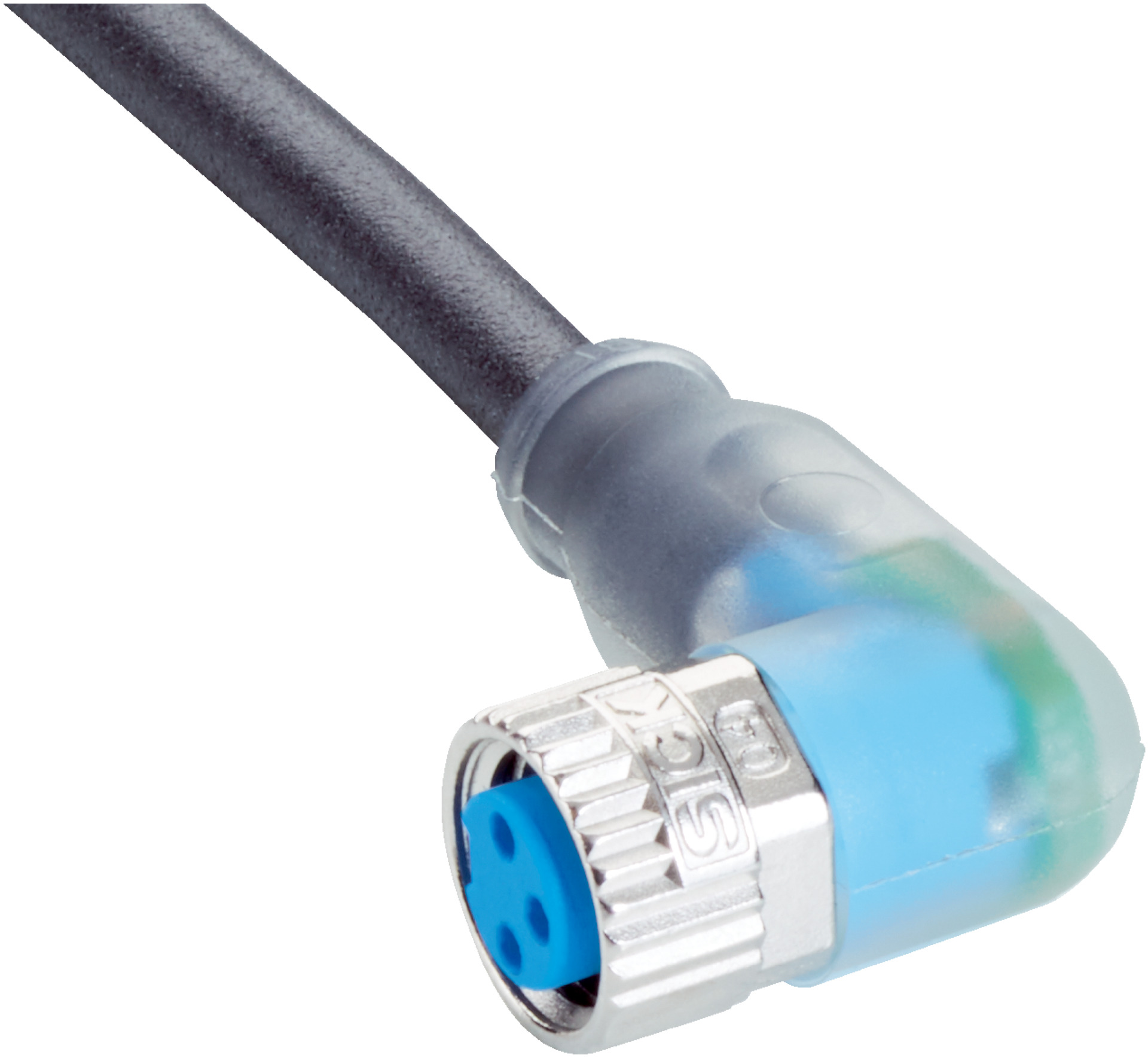

Sensor Cable with LED Indicator | M8 3-Pin Angled Connector | 3m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The sensor cable with LED indicator is designed for reliable connections in industrial automation and robotic applications. Featuring a female M8 3-pin angled connector and a durable 3m PUR halogen-free cable, it ensures high performance in uncontaminated zones and environments with oils. With an IP65/IP66K/IP67 rating, this cable is built to withstand harsh conditions while providing excellent flexibility and torsion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 3 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Reference voltage: 24 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 3000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Transparent TPU connector material with zinc die-cast nickel-plated locking nut
- 3 m PUR halogen-free cable, black jacket
- IP65 / IP66K / IP67 enclosure rating
- LED function indicator
- Suitable only for PNP sensors
- High bending radius and torsion cycles for durability
- Operating temperature range from -40 °C to +85 °C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper function and safety.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK YI8U13-030UA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and reliable cabling.
