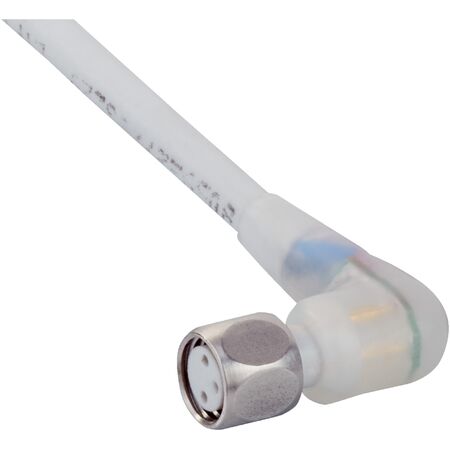

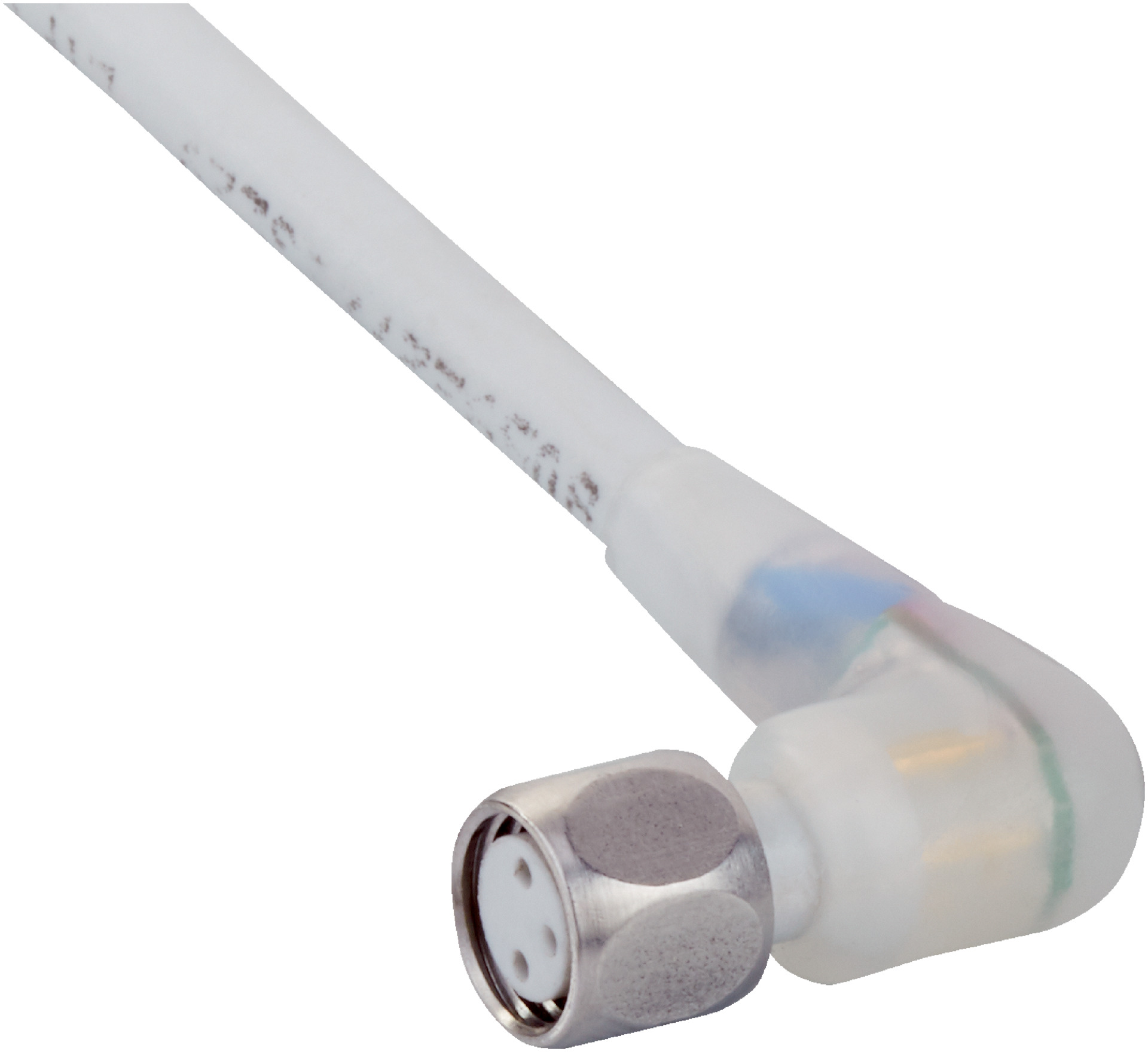

Sensor Cable with LED Indicator | M8 3-Pin Angled Connector | IP69K Rated | by SICK
The sensor cable with LED indicator is designed for reliable connections in hygienic and washdown zones. Featuring an M8 3-pin angled connector and IP67/IP69K enclosure rating, this cable is perfect for PNP sensors and drag chain operations. Built to withstand chemical cleaning agents, it ensures durability and long service life, making it ideal for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled
- Connection type head B: Flying leads
- Connector material: PP
- Connector color: Gray
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Width across flats: 9 mm
- Cable length: 2 m, 4-wire, PP
- Jacket material: PP
- Jacket color: Gray
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +105 °C
- Operating temperature stationary position: -40 °C to +105 °C
- Bending cycles: ≥ 4,000,000
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- LED display: Yes
- Dimensions (H x L x W): 20mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled
- Flying leads connection
- LED function indicator
- IP67/IP69K enclosure rating
- Resistant to chemical cleaning agents including lactic acid and hydrogen peroxide
- Torsion force 180°/1 m
- Bending cycles ≥ 4,000,000
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with IP67/IP69K standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Suitable for PNP sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0803-L02MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
