Sensor Cable with M12 Connector | 10m Length | IP65/IP67/IP68 Rated | by SICK
The sensor cable with M12 connector is designed for industrial automation, featuring a 10m length and a robust IP65/IP67/IP68 rating for environmental protection. Ideal for applications in zones with oils and lubricants, this cable ensures reliable connections with its female M12 4-pin angled connector and flying leads, making it perfect for flexible use and stationary positions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

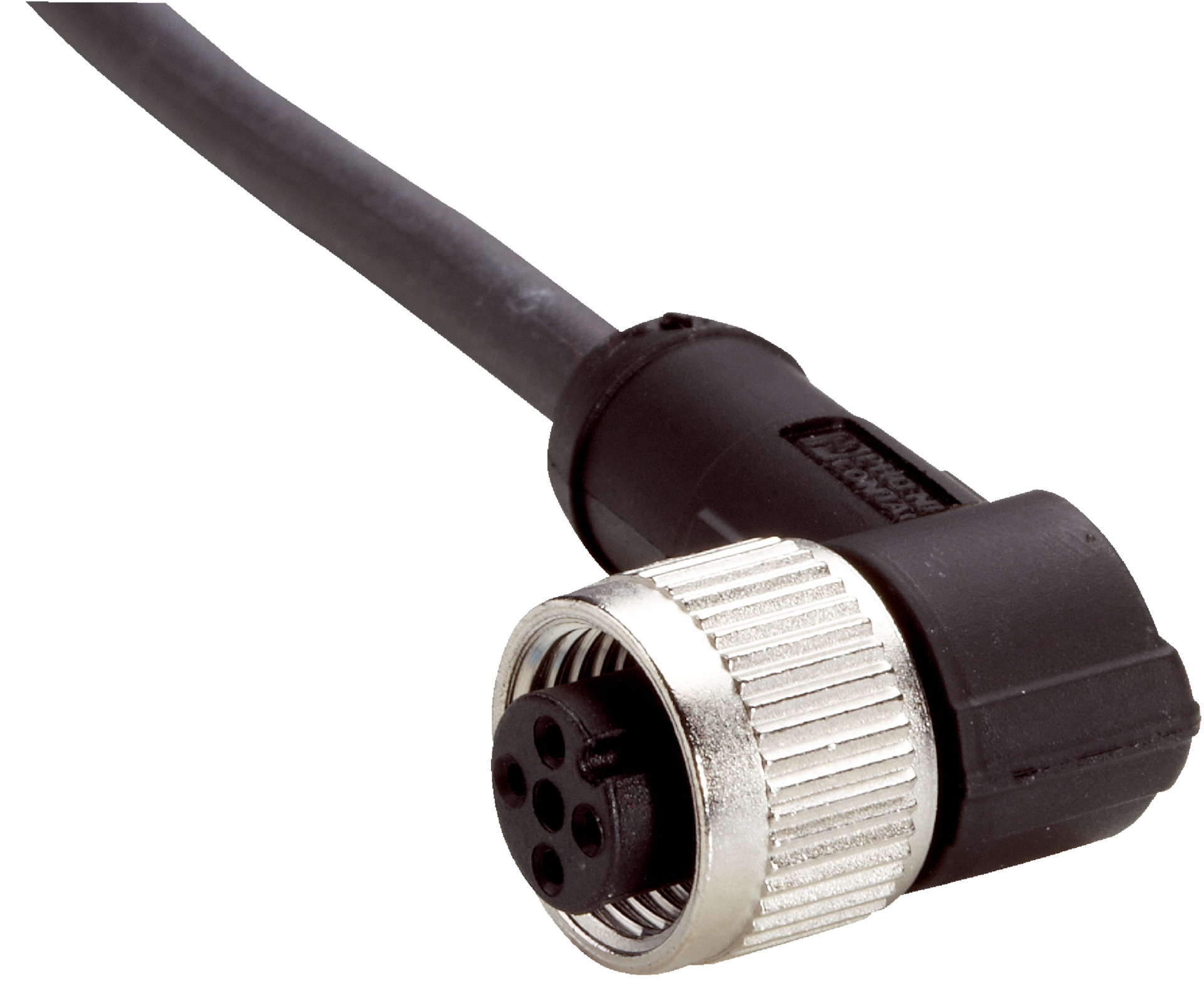

- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable: 10 m, 4-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 2,000,000
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants, Drag chain operation
- Enclosure rating: IP65 / IP67 / IP68
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –25 °C to +80 °C
- Operating temperature head: –25 °C to +90 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.3 kg
Key Features
- Female M12 4-pin angled connector on head A
- Flying leads on head B
- Cable length of 10 meters with 4-wire PUR halogen-free jacket
- High bending radius suitable for flexible use and stationary positions
- IP65, IP67, and IP68 rated for robust environmental protection
- Operating temperature range from -25°C to +90°C at the head
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

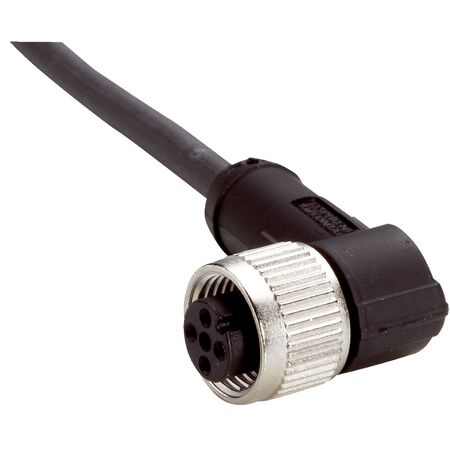

The SICK DOL-1204W10MC75KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
