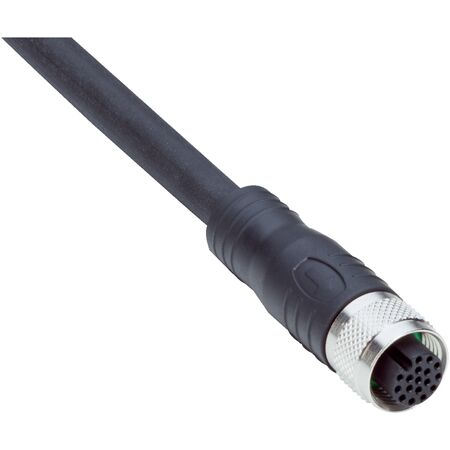

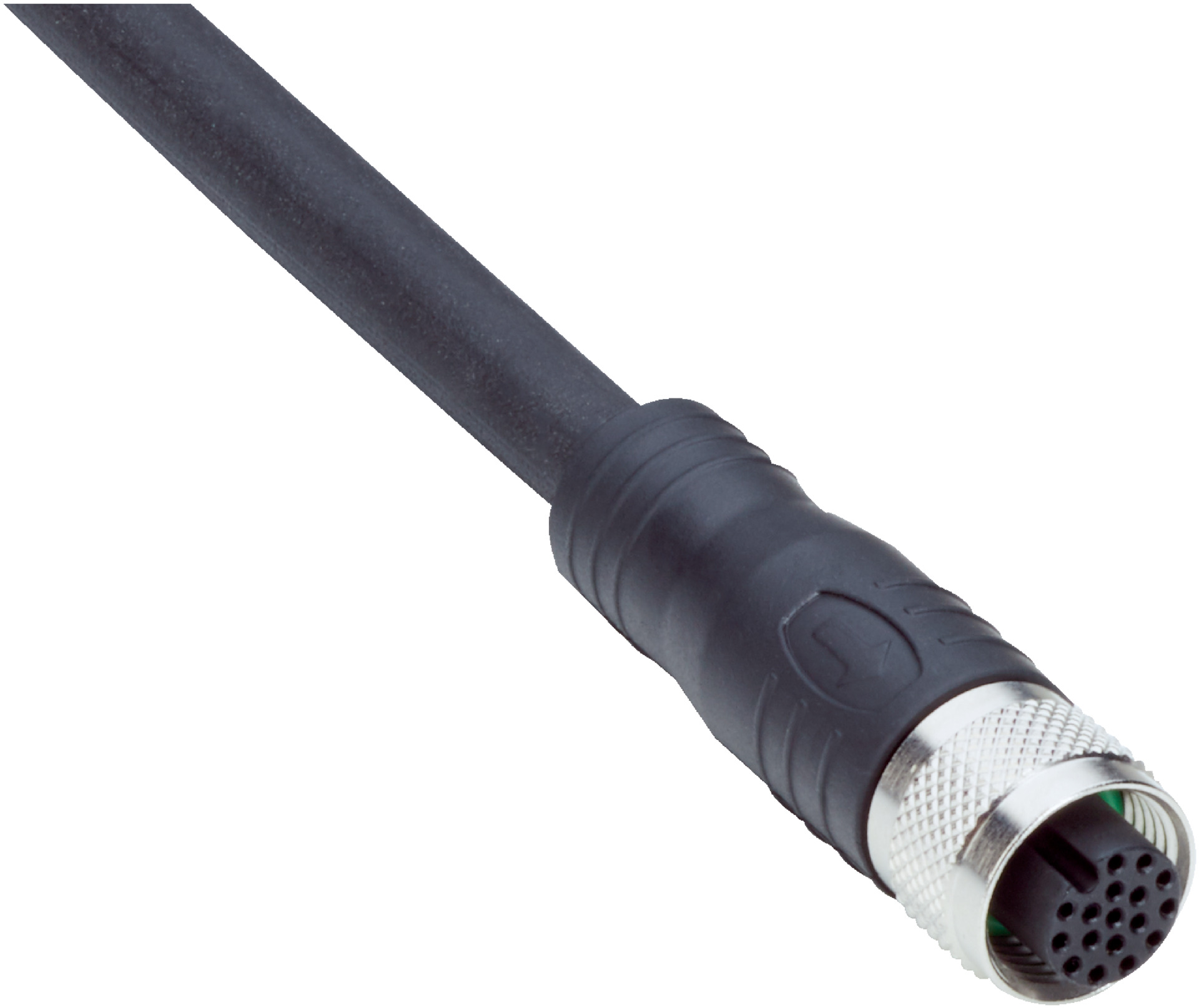

Sensor Cable M12 17-Pin | 10m PUR Jacket | IP67 Rated | by SICK
The Sensor Cable M12 17-Pin is designed for reliable connections in industrial automation and robotics. With a durable 10m PUR jacket and IP67 rating, it withstands harsh environments while providing excellent signal integrity. Ideal for applications in uncontaminated zones and areas with oils, this cable features a screw connection locking plug for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m
- Cable wires: 17-wire, PUR jacket
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature flexible use: –20 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Reference voltage: ≤ 30 V AC/DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 1.5 A
- Signal type: Sensor/actuator cable
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 10 m, 17-wire PUR cable with black jacket
- Shielded cable with 7.5 mm diameter
- Flexible use temperature range: –20 °C to +80 °C
- Stationary position temperature range: –40 °C to +80 °C
- Operating temperature for head: –25 °C to +85 °C
- IP67 enclosure rating
- Contamination rating 3
- Overvoltage category III
- Current loading ≤ 1.5 A
- Rated impulse voltage 1.5 kV
- Insulation resistance 100 MΩ
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design helps prevent electromagnetic interference, improving system efficiency.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A2D-100UV2XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
