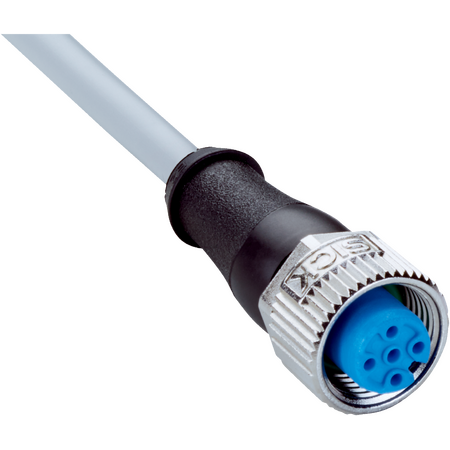

Sensor Cable M12 4-Pin | 15m Length | PVC Jacket | IP65 Rated | by SICK
The Sensor Cable M12 4-Pin is designed for reliable connections in industrial automation, featuring a 15m length and a durable PVC jacket. With an IP65 rating, this cable is perfect for sensor and actuator applications in environments with chemical exposure, ensuring robust performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 4-pin, Actuator cable PVC 4x0.34, M12 female connector cable, Industrial sensor cable 15m
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 4-wire, PVC jacket
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 15000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable jacket made of gray PVC, 15 meters long
- Unshielded 4-wire cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and flame retardant materials increase product lifespan, reducing waste.
- High insulation resistance and robust design minimize electrical losses and improve energy efficiency.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A14-150VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
