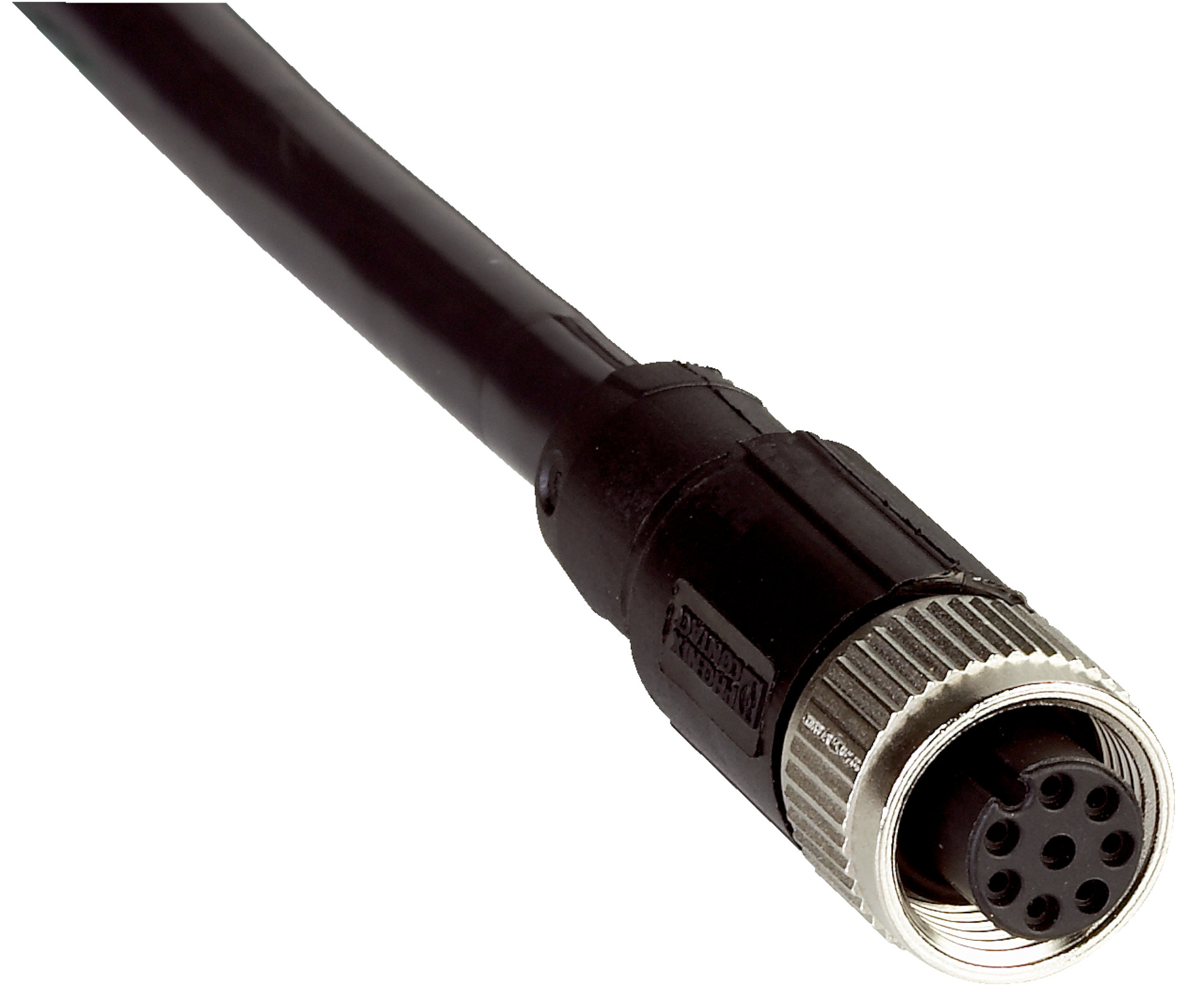

Sensor Cable M12 8-Pin | 10m Length | Halogen-Free PUR | by SICK
The Sensor Cable M12 8-Pin is designed for reliable industrial automation, featuring a 10m halogen-free PUR cable and a female connector for easy connections. Built to withstand extreme temperatures from -40 °C to +90 °C, this durable cable supports current loading of 2 A and is perfect for sensor and actuator applications in environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 9 x cable diameter, Stationary position > 9 x cable diameter
- Operating temperature: Flexible use -5 °C to +80 °C, Stationary position -40 °C to +80 °C, Head -25 °C to +90 °C
- Current loading: 2 A
- Reference voltage: ≤ 30 V
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Bending cycles: 4,000,000
- Signal type: Sensor/actuator cable
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- 10 m length, 8-wire PUR cable, halogen-free
- Zinc die-cast, nickel-plated locking nut
- Unshielded cable with TPU connector material
- High bending radius for flexible use and stationary position
- Operating temperature range: -40 °C to +90 °C
- Supports current loading of 2 A and reference voltage ≤ 30 V
- Designed for traversing speed up to 3 m/s and acceleration ≤ 10 m/s²
- Durable for 4,000,000 bending cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

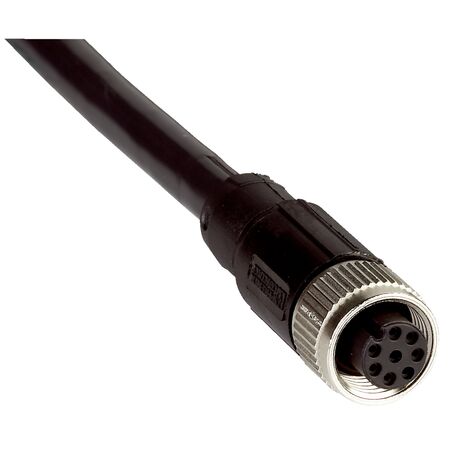

The SICK DOL-1208G10MD25KM1 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
