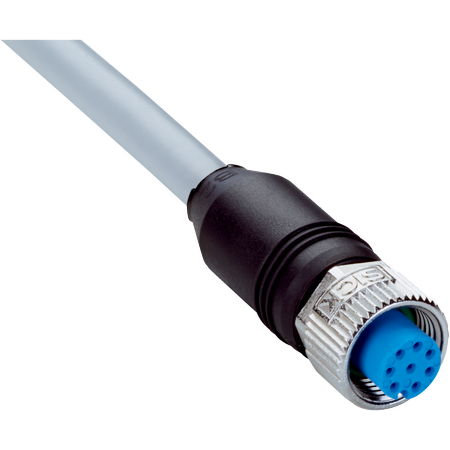

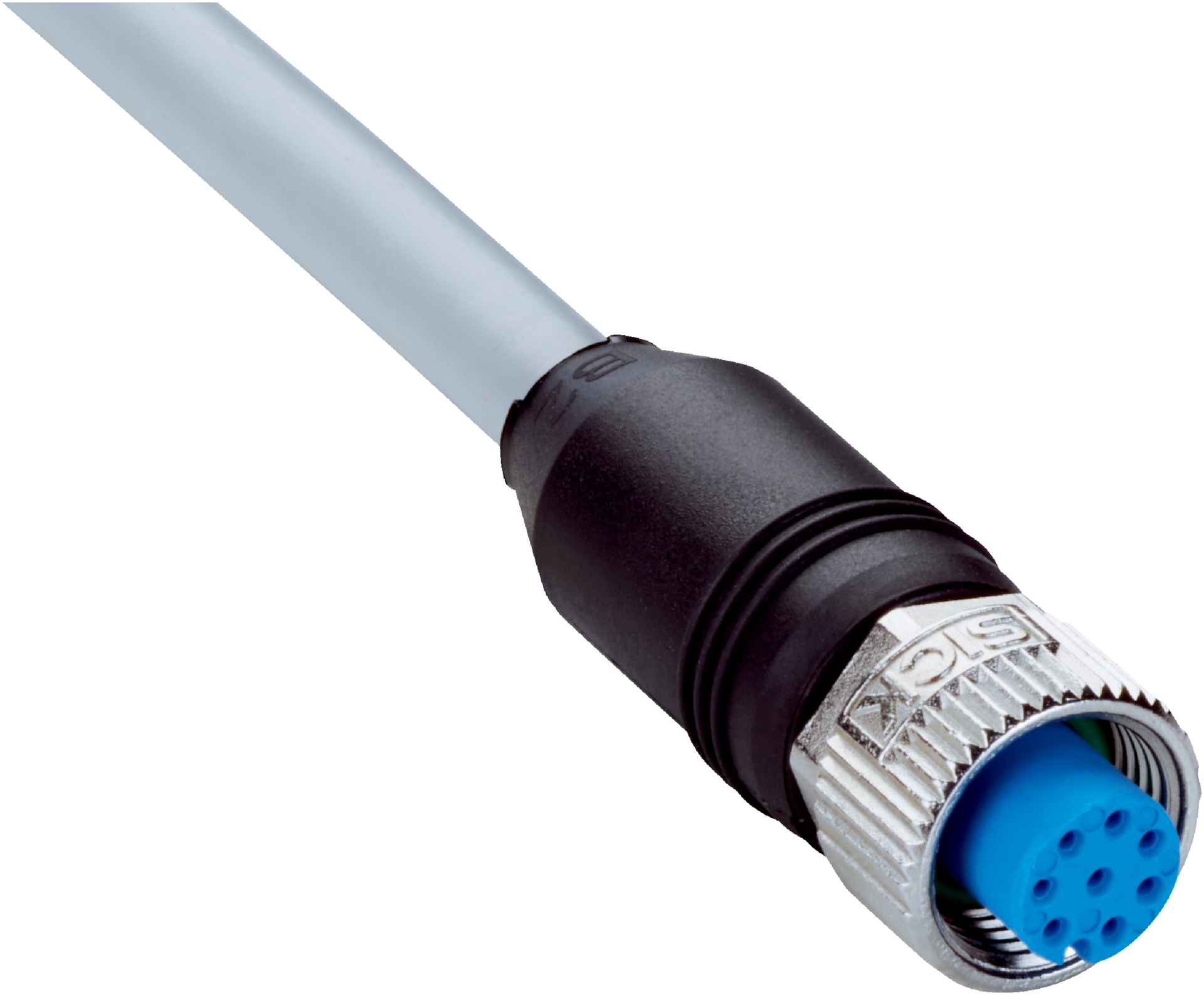

Sensor Cable M12 8-Pin | PVC Shielded | IP65/IP66/IP67 Rated | 15m Length | by SICK
The Sensor Cable M12 8-Pin is designed for reliable connections in industrial environments, featuring a PVC shielded jacket and IP65/IP66/IP67 protection ratings. With a length of 15 meters and a conductor cross-section of 0.25 mm², it's perfect for sensor and actuator applications in uncontaminated and chemical zones, ensuring signal integrity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 8-pin, Actuator cable PVC shielded, SICK sensor cable, Industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable wires: 8-wire, PVC jacket
- Jacket color: Gray
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Reference voltage: 30 V AC/DC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 15000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector on head A
- Flying leads on head B with screw locking plug connector
- Cable jacket made of gray PVC with 8 wires of 0.25 mm² conductor cross section
- Shielded cable for signal integrity
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: -30°C to +85°C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and flame retardant properties enhance safety and reduce fire risk
- Shielded cable reduces electromagnetic interference, improving system efficiency and reducing waste from signal errors
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A28-150VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in uncontaminated and chemical zones.
