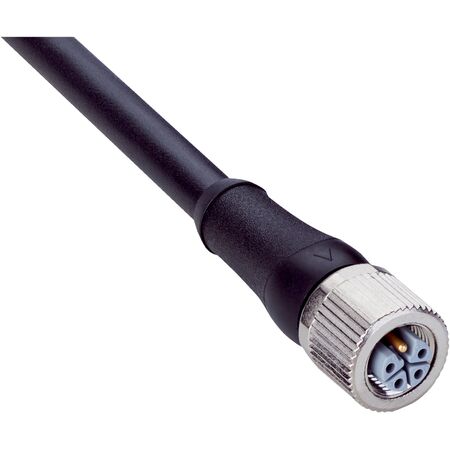

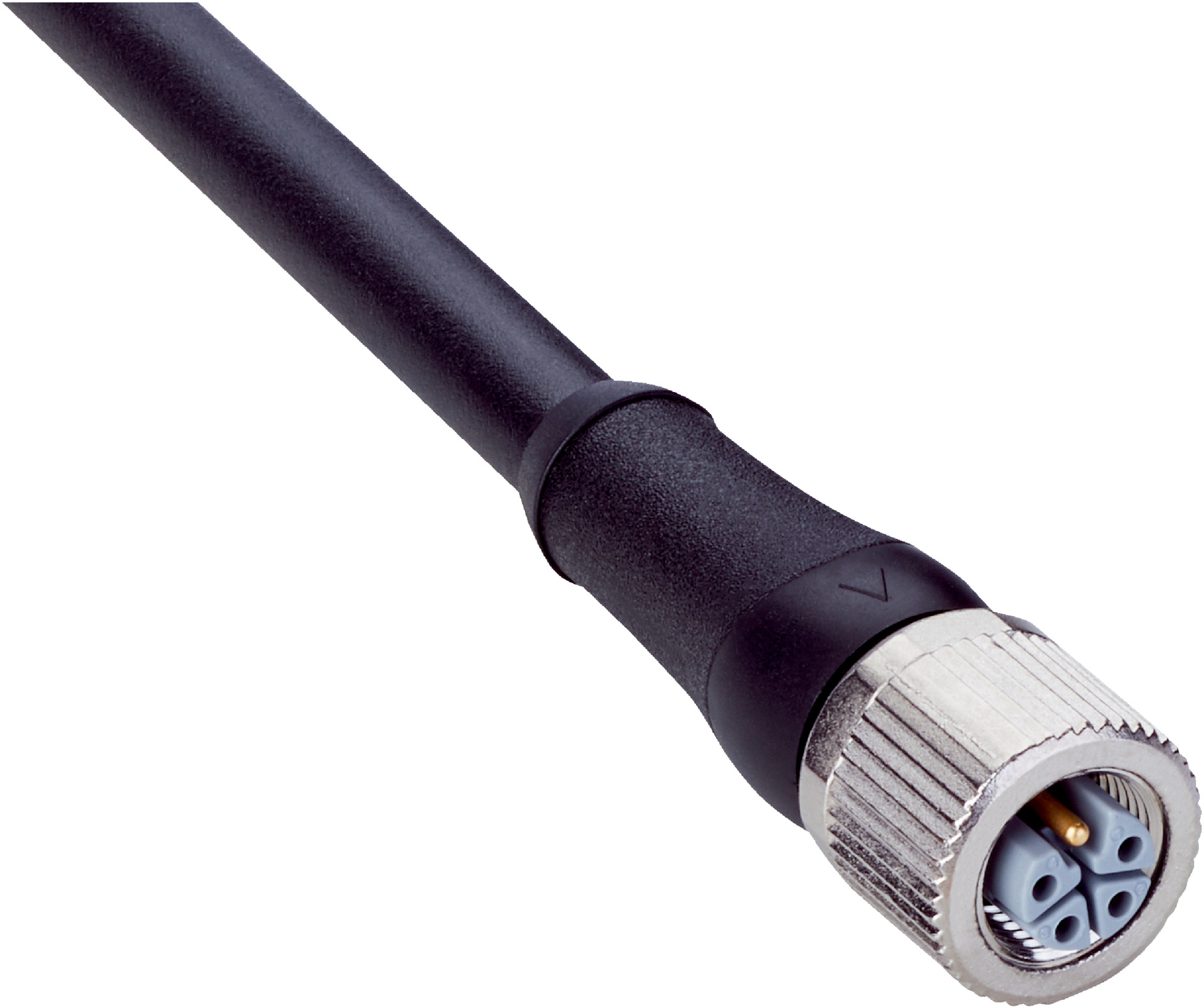

Sensor Cable M12 Female to Flying Leads | 15m Length | IP65/IP67 Rated | by SICK
The YF2L15-150UH1XLEAX sensor cable features a female M12 connector and flying leads, designed for robust industrial applications. With a 15m PUR halogen-free cable, it excels in environments with oils and lubricants, ensuring reliable performance in robotics and drag chain operations. Its IP65/IP67 rating provides excellent protection against dust and water, making it ideal for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, L-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 15 m, 5-wire, PUR, halogen-free
- Cable diameter: 8.2 mm
- Conductor cross section: 1.5 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage, cable: 1,000 V AC
- Test voltage, cable: 10,000 V AC
- Reference voltage: 63 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 12 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Application: Uncontaminated zones, zones with oils and lubricants, robot, drag chain operation
- Enclosure rating: IP65 / IP67
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –50 °C to +80 °C, Drag chain operation –20 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance, piping: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 15000mm x 17mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 5-pin, straight, L-coded
- Flying leads with screw connection locking plug
- Cable length 15 m, 5-wire, PUR, halogen-free
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -50 °C to +85 °C depending on use
- Enclosure rating IP65/IP67 for protection against dust and water
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Nominal voltage 1,000 V AC and test voltage 10,000 V AC
- Current loading capacity of 12 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2L15-150UH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor applications requiring durable and flexible cabling.
