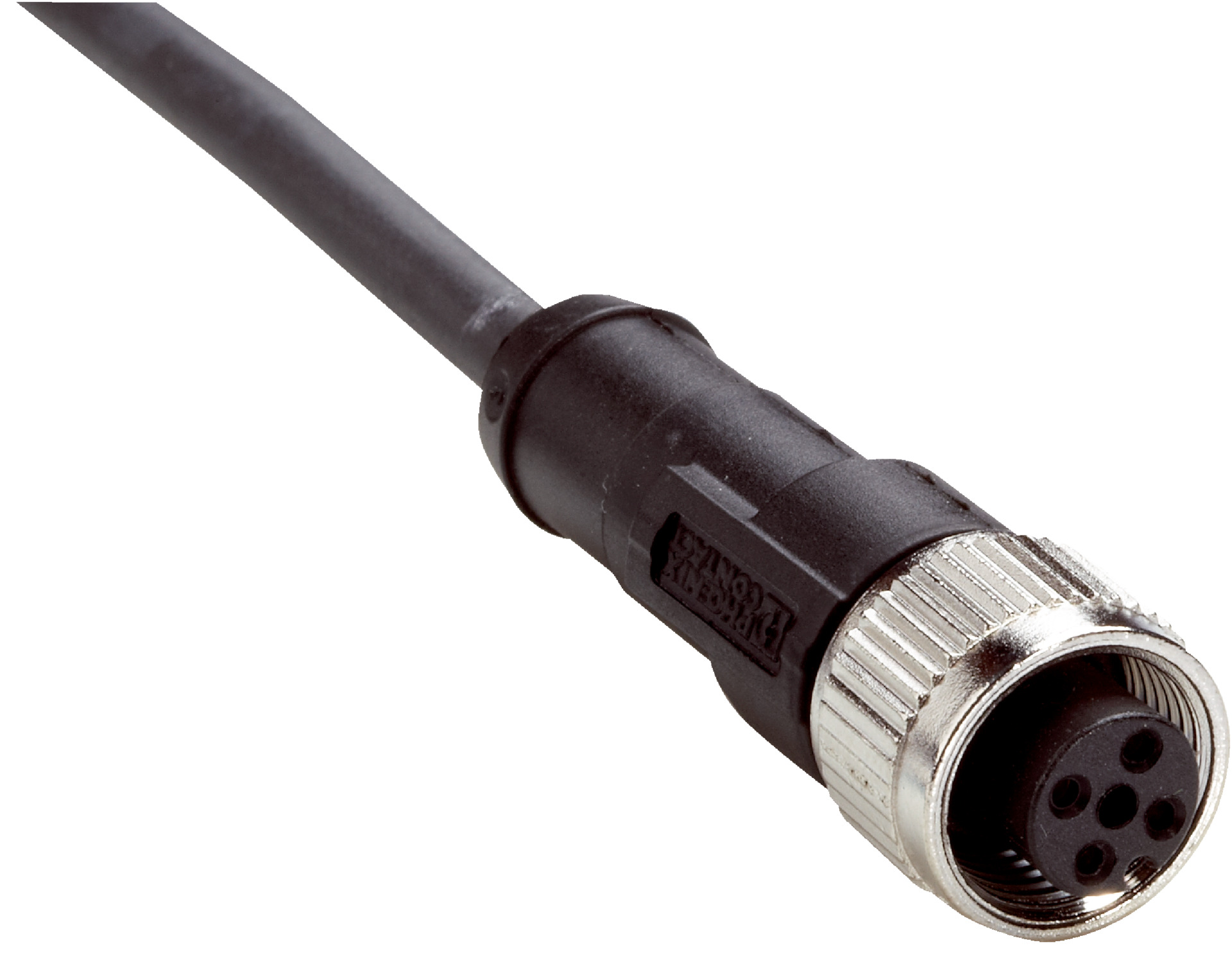

Sensor Cable M12 Female to Flying Leads | 20m Length | IP65/IP67/IP68 Rated | by SICK
The Sensor Cable M12 Female to Flying Leads is designed for industrial automation, featuring a durable 20m length and IP65/IP67/IP68 rating for robust environmental protection. With a 4-wire halogen-free PUR jacket, it supports flexible use in temperatures from -5°C to +80°C, making it ideal for sensor and actuator connections in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 20 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -25 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Bending cycles: ≥ 2,000,000
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP68
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.3 kg
Key Features
- Female M12 4-pin straight connector on head A
- Flying leads on head B for flexible connection
- Cable length of 20 meters with 4-wire PUR halogen-free jacket
- High durability with over 2,000,000 bending cycles
- Suitable for flexible use from -5°C to +80°C and stationary use from -25°C to +80°C
- IP65/IP67/IP68 rated for robust environmental protection
- Current loading capacity of 4 A
- Cable diameter of 5.9 mm with 0.75 mm² conductor cross section
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

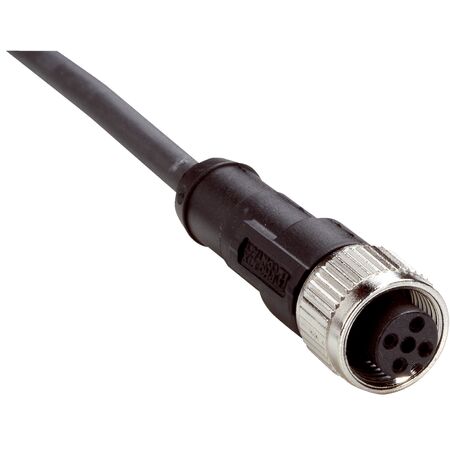

The SICK DOL-1204G20MC75KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
