Sensor Cable M12 to M8 | 5m Length | IP65/IP66K/IP67 Rated | by SICK

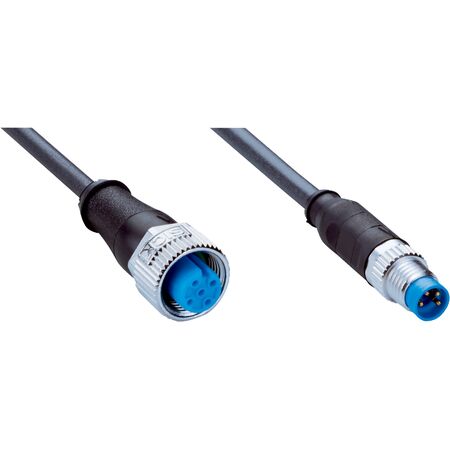

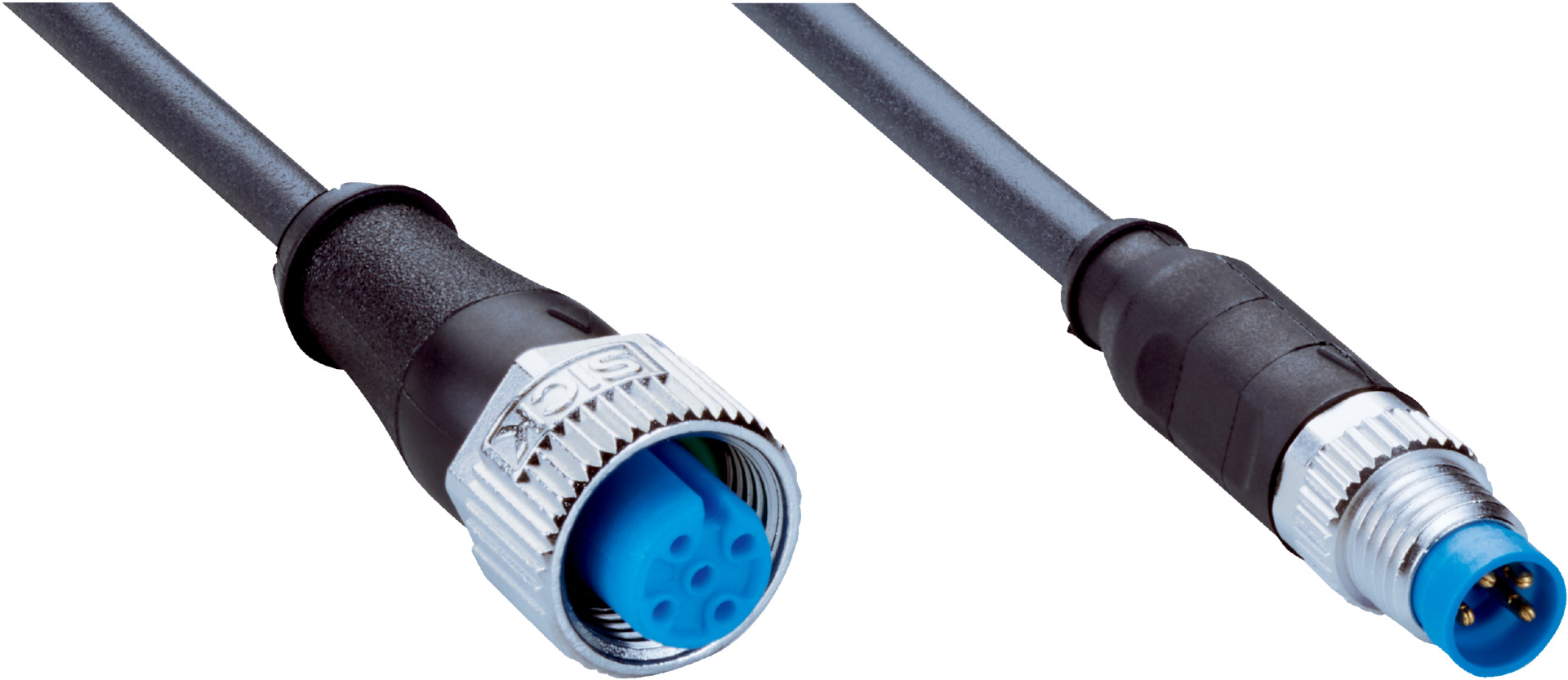

The Sensor Cable M12 to M8 is a robust 5m actuator cable designed for industrial automation and robotics. Featuring a female M12 connector and a male M8 connector, this cable is perfect for applications in uncontaminated zones and drag chain operations. With an impressive operating temperature range of -40 °C to +85 °C and an enclosure rating of IP65/IP66K/IP67, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable: 5 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, straight, A-coded
- Male connector M8, 4-pin, straight, A-coded
- Screw connection locking plug
- Cable length 5 m, 4-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67
- Torsion cycles up to 2,000,000
- Nominal voltage 300 V AC, current loading 4 A
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-050UA3M8U14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
