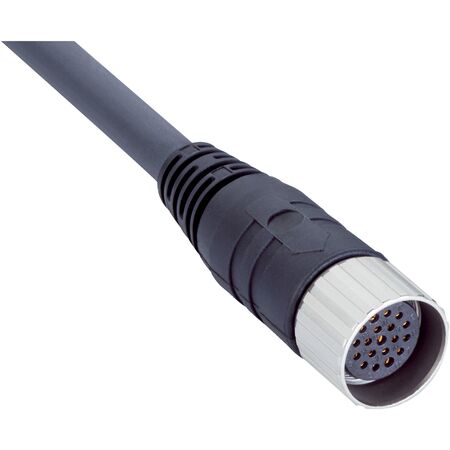

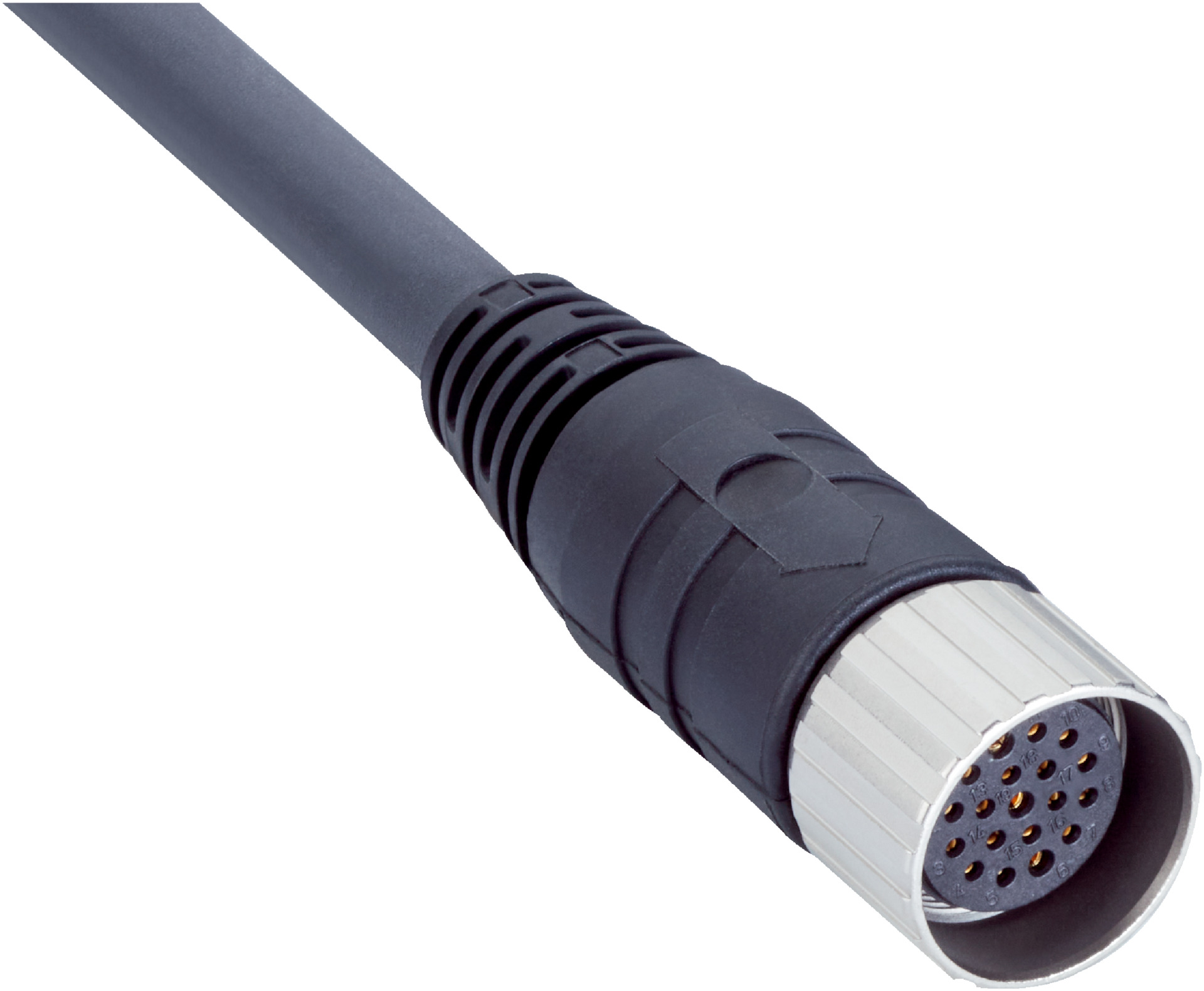

Sensor Cable M23 19-Pin | 15m Length | Halogen-Free PUR Jacket | IP67 Rated | by SICK
The Sensor Cable M23 19-Pin is designed for reliable connections in industrial automation, featuring a 15m length and a halogen-free PUR jacket. With an IP67 rating for dust and water protection, this cable is perfect for environments with oils and lubricants, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M23, 19-pin, straight
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 15 m
- Cable wires: 19-wire
- Jacket material: PUR, halogen-free
- Cable diameter: 11.6 mm
- Conductor cross section: 16 x 0.5 mm² + 3 x 1.0 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Operating temperature stationary position: -50°C to +80°C
- Drag chain operation temperature: ≤ +60°C
- Bending cycles: 2,000,000
- Reference voltage: ≤ 120 V DC
- Rated impulse voltage: 1.5 kV
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants, drag chain operation
- Enclosure rating: IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: II
- Authorizations: CE
- Dimensions (H x L x W): 20mm x 15000mm x 20mm
- Weight: 1.2 kg
Key Features
- Female M23 19-pin straight connector on head A
- Flying leads on head B with screw locking plug connector
- Cable length of 15 meters with 19 wires
- Halogen-free PUR jacket and cable material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -50°C to +80°C (stationary), -25°C to +80°C (flexible use)
- High bending cycle durability up to 2,000,000 cycles
- Contamination rating of 3
- Rated impulse voltage of 1.5 kV
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable materials reduce environmental impact during disposal
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK DOL-2319-G15MC sensor/actuator cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
