Sensor Cable M8 to M12 | 5m Length | IP65/IP66K/IP67 Rated | by SICK

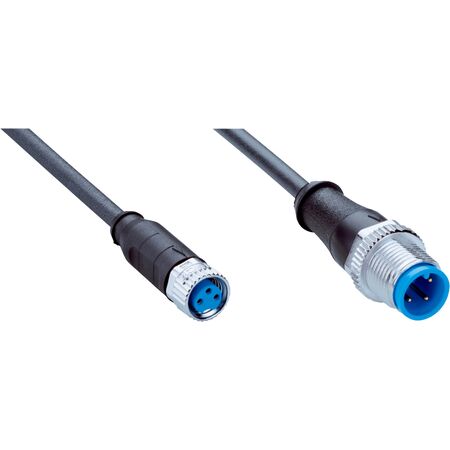

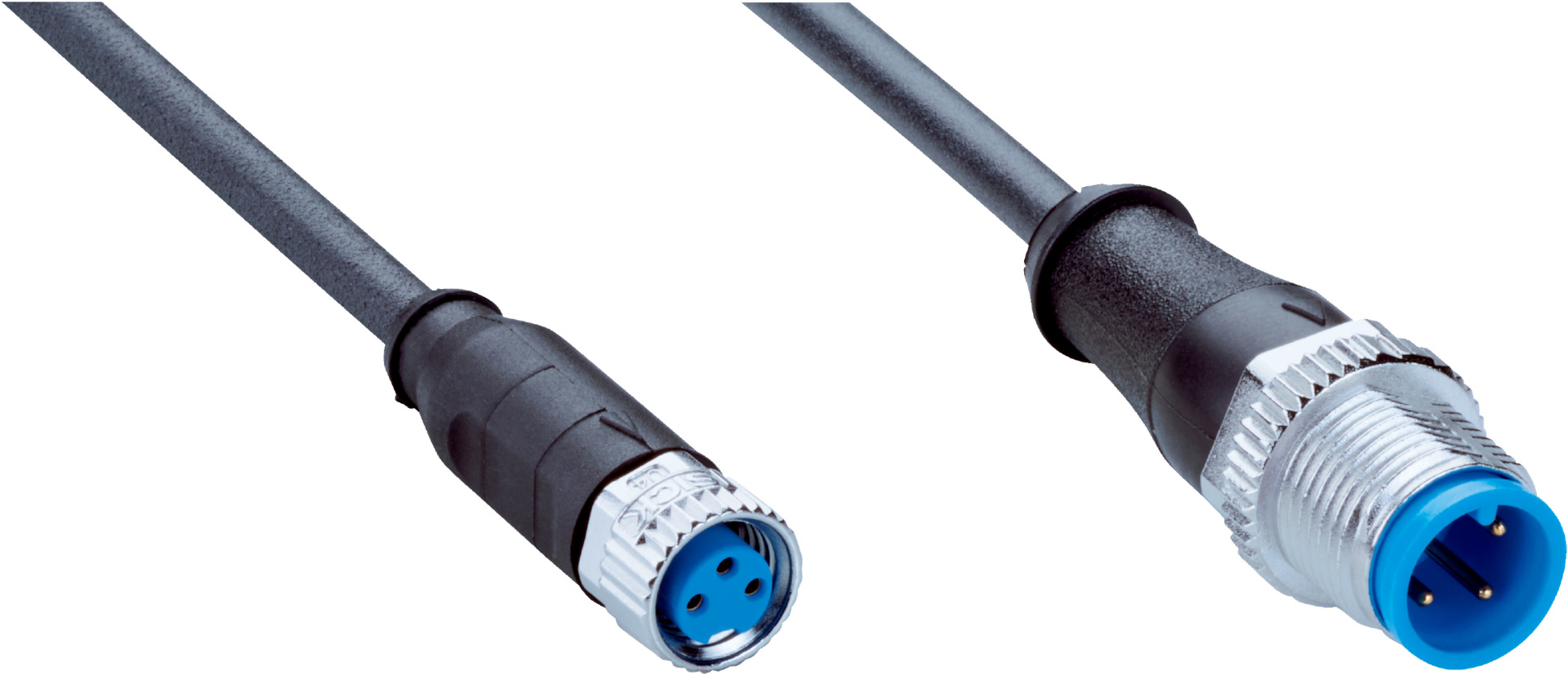

The Sensor Cable M8 to M12 is a robust 5m actuator cable designed for industrial automation and robotics. Featuring a female M8 connector and a male M12 connector, this cable is perfect for applications in uncontaminated zones and environments with oils. With an IP65/IP66K/IP67 rating, it ensures reliable performance in harsh conditions, making it an ideal choice for your sensor connection needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Male connector, M12, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 5 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, straight, A-coded
- Male connector M12, 3-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm, conductor cross section 0.25 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Rated voltage: 300 V AC, test voltage 2,500 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion cycles up to 2,000,000
- Flame retardant according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF8U13-050UA1M2A13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
