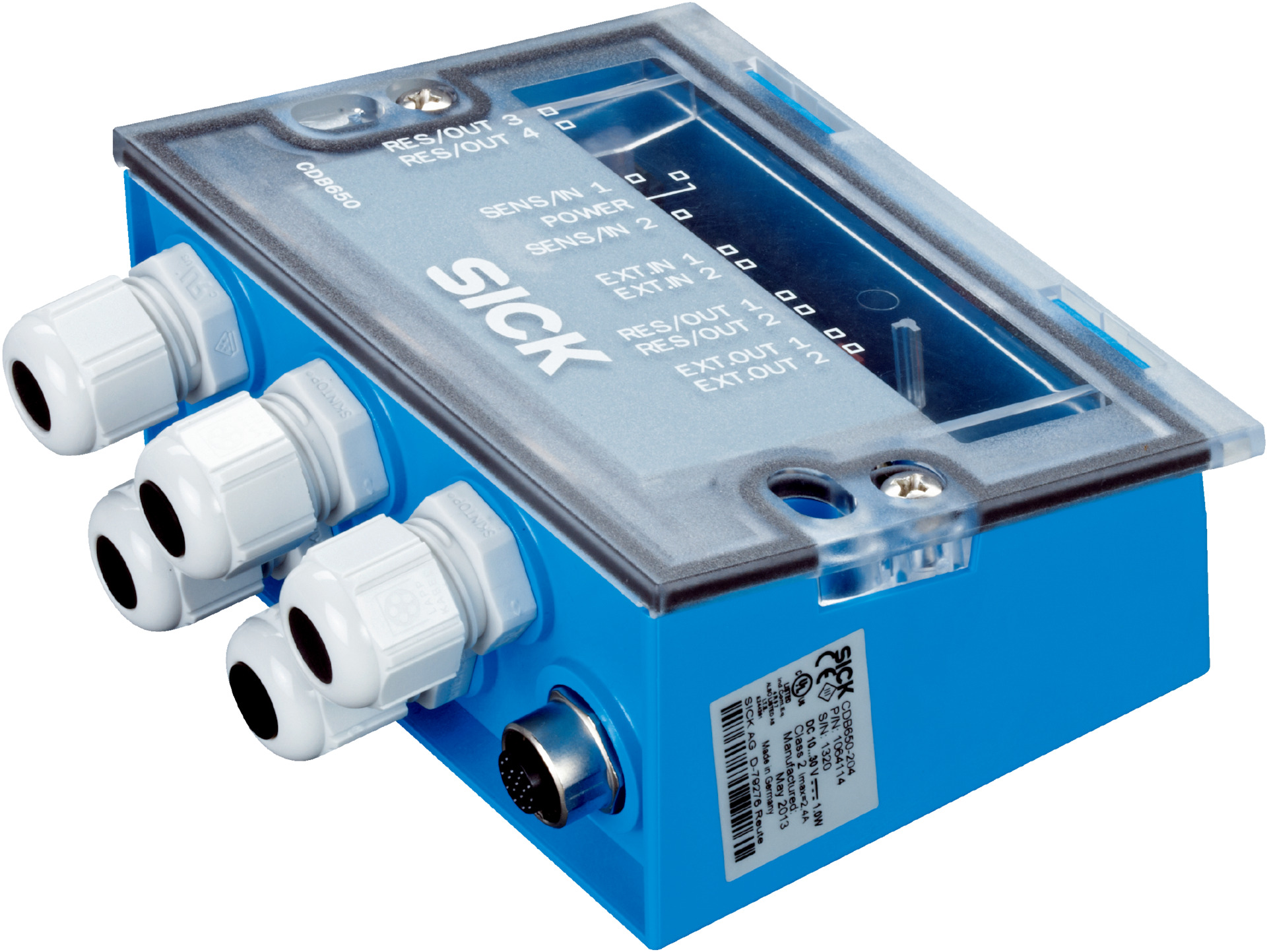

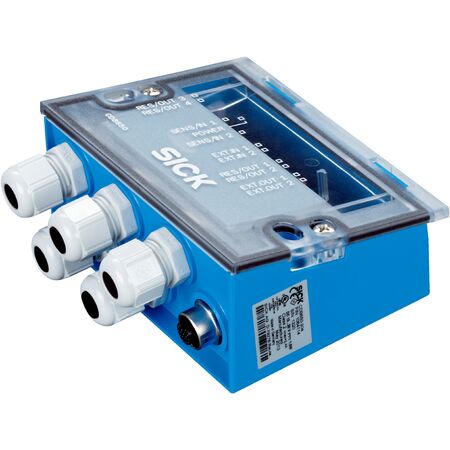

Sensor Connection Device CDB650-204 | IP65 Enclosure | 17-Pin M12 Connector | by SICK
The Sensor Connection Device CDB650-204 is designed for seamless integration in industrial automation, featuring an IP65 enclosure and a 17-pin M12 connector for reliable sensor connections. With a wide operating temperature range of -40 °C to +50 °C and low power consumption of just 1 W, this device is perfect for various applications, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 1 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 17-pin M12 socket, A-coded
- Service plug: 9-pin D-Sub plug (internal)
- Serial interfaces supported: RS-232, RS-422, RS-485 (depending on sensor connected)
- Digital inputs and outputs: Depending on sensor connected
- Optical indicators: 11 LEDs
- Configuration software: SOPAS ET
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -30 °C to +75 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Dimensions (H x L x W): 54mm x 124mm x 113mm
- Weight: 0.265 kg
Key Features
- Connection device basic for connecting one sensor with 2 A fuse
- Includes 5 cable glands and RS-232 interface
- 17-pin M12 female connector for sensor connection
- All outputs available on screw/spring-loaded terminals
- Supports cloning module (CMC)
- Polycarbonate housing with IP65 enclosure rating
- 11 LED optical indicators for status display
- Supports serial communication: RS-232, RS-422, RS-485 depending on sensor
- Operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor connection
- Integration with Lector series CLV62x - CLV64x and CLV69x RFID read/write devices
- Use with InspectorP series sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 1 W reduces energy usage
- Durable polycarbonate housing extends product life and reduces waste
- IP65 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDB650-204 Connection Device Basic is available for immediate purchase, ideal for industrial automation and sensor integration applications.
