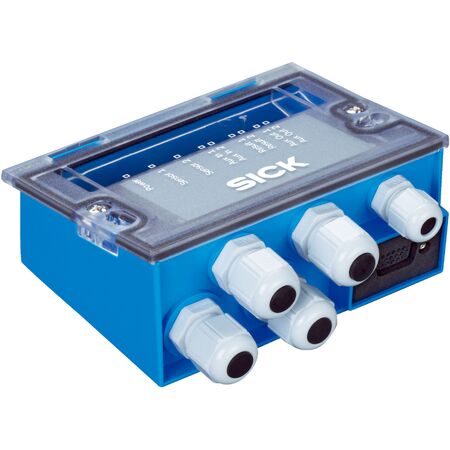

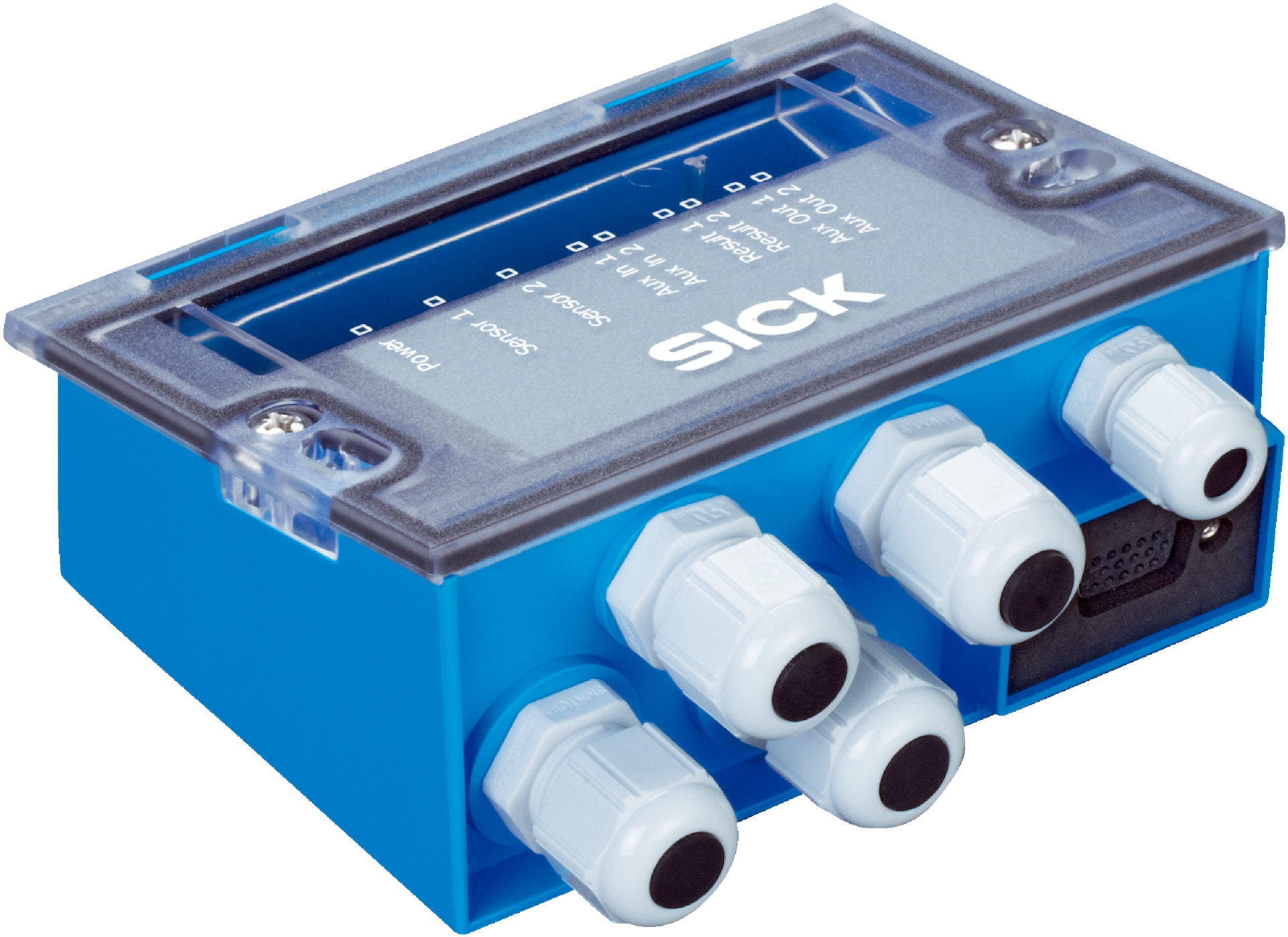

Sensor Connection Module CDB620-201 | IP65 Rated | 9 LED Indicators | by SICK
The Sensor Connection Module CDB620-201 is designed for seamless integration in industrial automation, featuring an IP65 enclosure and 9 LED optical indicators for status display. With support for various serial interfaces and a durable polycarbonate housing, this module is perfect for sensor systems requiring reliable connectivity and configuration using SOPAS ET software.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sensor Connection Module CDB620-201 | IP65 Rated | 9 LED Indicators | by SICK
Brand: SICK
SKU: 1042258
Alternatively Known As: Sensor Connection Module, CDB620 Connection Module, SICK Sensor Interface Module
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 1 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485), CAN (depending on sensor connected)
- Optical indicators: 9 LEDs
- Operating temperature range: -35 °C to +40 °C
- Storage temperature range: -35 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 53.9mm x 124.2mm x 113.1mm
- Weight: 0.26 kg
Key Features
- Small connection module with 5 cable glands
- Socket for CMC cloning module
- Supports serial interfaces RS-232, RS-422, RS-485 depending on sensor
- CAN interface support depending on sensor
- 9 LED optical indicators for status display
- Housing made of polycarbonate with IP65 enclosure rating
- Protection class III for electrical safety
- Compatible with SOPAS ET configuration software
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with sensor modules and industrial electrical standards.
Applications
- Connection module for sensors in industrial automation
- Suitable for use with CLV61x - CLV65x, Lector62x, RFH6xx, RFU62x sensor series
- Integration in sensor systems requiring cloning module support
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable polycarbonate housing ensures long product life reducing waste
- Low power consumption of 1 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDB620-201 connection module is available for immediate purchase, ideal for industrial sensor integration and automation applications.
