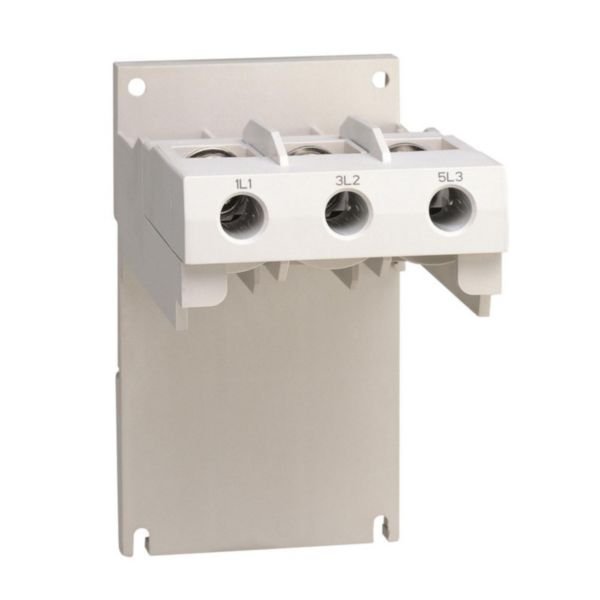

Separate Mounting Unit for RTX3 40 | 0.16A to 32A Compatibility | DIN Rail or Panel Mounting | by Legrand
The Separate Mounting Unit for RTX3 40 is designed for thermal relays rated from 0.16A to 32A, providing flexible mounting options on DIN rails or panels. Ideal for industrial motor control applications, it ensures thermal protection against overloads and motor stalling, making it a reliable choice for electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Separate Mounting Unit for RTX3 40 | 0.16A to 32A Compatibility | DIN Rail or Panel Mounting | by Legrand
Brand: Legrand
SKU: 416591
Alternatively Known As: RTX3 Separate Mounting Base, RTX3 Relay Mounting Unit, Motor Relay Mounting Base
Technical Specifications
- Compatible with RTX3 thermal relays rated 0.16A to 32A
- Mounting options: DIN rail or panel mounting with fixing screws
- Designed for use with CTX3 3-pole industrial contactors
- Thermal relay protection against overloads and motor stalling
- Differential relay type for enhanced phase failure protection
- Standards compliance: IEC 60947-1, IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Designed for RTX3 thermal relays from 0.16A to 32A
- Allows separate mounting of relays from contactors on DIN rail or panel
- Fixing screws included for secure installation
- Compatible with RTX3 40 thermal relays
- Thermal protection against overloads, long starting times, and motor stalling
- Differential type relay provides faster tripping for phase failure protection
- Conforms to IEC 60947-1 and IEC 60947-4-1 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection systems to ensure compliance and safety.
Applications
- Industrial motor control and protection systems
- Tertiary and industrial electrical installations
- Mounting RTX3 thermal relays separately from contactors on DIN rails or panels
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient motor protection to reduce energy waste and equipment damage
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand Separate Mounting Unit for RTX3 40 0.16A to 32A is available for immediate purchase, ideal for industrial and tertiary motor control applications.
