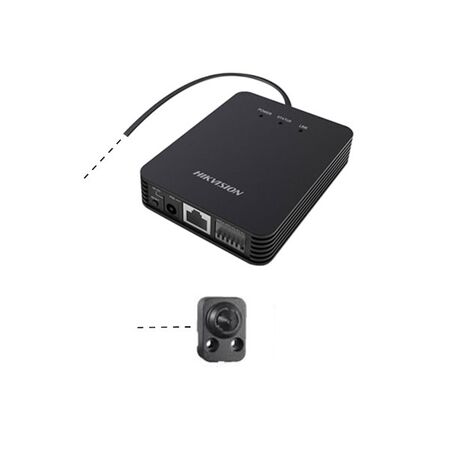

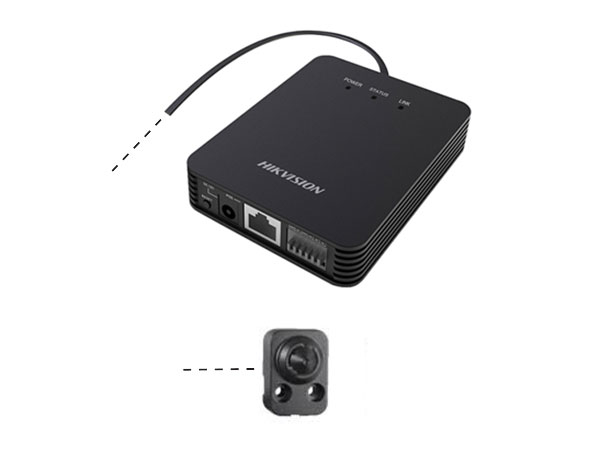

Separated Camera 3.7mm with 2m Cable Hikvision
Hikvision separated camera features a 3.7mm lens and 2m cable. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD6425G1-10(3.7mm)2m, Covert IP Camera, Split Pinhole Camera, Separated CCTV Camera
Technical Specifications
- Image Resolution: 2 megapixels
- Lens: Fixed 3.7mm cylindrical lens
- Cable Length: 2m
- Video Compression: H.265+, H.264+, H.264 and MJPEG
- Wide Dynamic Range: 120dB true WDR
- Noise Reduction: 3D digital noise reduction
- Power Supply: 12V DC or PoE 802.3af
- Power Consumption: Approximately 3.65W
- Network Interface: TCP/IP
- Audio and Alarm: Audio input/output and alarm input/output interfaces
- Operating Conditions: -30°C to 60°C, up to 95% relative humidity non-condensing
- Australian EMC Compliance: RCM to AS/NZS CISPR 32:2015
- Environmental Compliance: RoHS, WEEE and REACH
- Dimensions (H x L x W): 26mm x 77.5mm x 69mm
- Weight: 0.451 kg
Key Features
- Separated camera design for discreet or concealed installations
- Compact 3.7mm lens head connected to the main body by a 2m cable
- 2MP colour network video suitable for CCTV and security applications
- 120dB true WDR helps manage scenes with strong backlighting
- H.265+ compression reduces network bandwidth and storage requirements
- Supports PoE for simplified single-cable network connection
- Includes audio and alarm interfaces for compatible security systems
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified CCTV or security technician. Use compatible PoE or 12V DC equipment and install the network, power and low-voltage cabling in accordance with applicable Australian requirements.
Applications
- Covert CCTV installations
- Retail and commercial security monitoring
- Office, reception and access-control areas
- Transport and public-space surveillance
- Discreet indoor monitoring where the camera body must be concealed
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- AS/NZS 62676.4:2020 provides application guidance for the selection, installation, commissioning and maintenance of CCTV systems
- AS/NZS CISPR 32:2015 EMC compliance is specified for the product's RCM approval
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with less efficient compression formats
- RoHS compliance restricts the use of specified hazardous substances in the product
- WEEE and REACH environmental compliance support responsible product management and end-of-life handling
- Durable network-camera construction can reduce replacement frequency and associated electronic waste
Warranty Information
Hikvision warranty terms vary by regional SKU and product line. Eligible Special Series network cameras manufactured after 1 March 2022 may receive Hikvision's five-year premium warranty; confirm coverage against the supplied Australian SKU and purchase channel.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors, subject to regional model availability.
