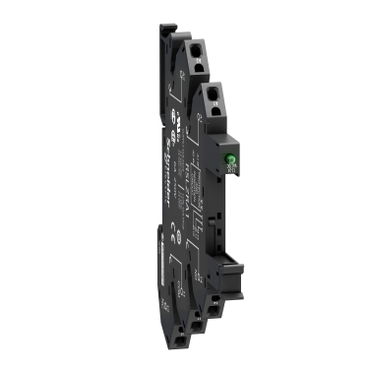

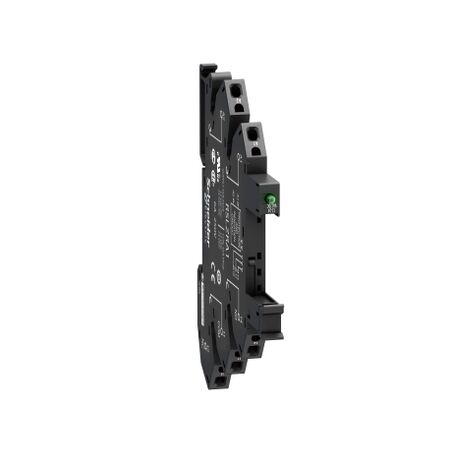

Separated Socket LED 110VAC DC | Integrated LED Indicator | Protection Circuit | by Clipsal
The Separated Socket LED 110VAC DC is designed for reliable relay applications, featuring an integrated LED indicator for status display and a protection circuit for enhanced safety. Ideal for industrial automation and control cabinets, this socket ensures secure connections with spring terminals, making it perfect for machinery requiring efficient relay solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Separated Socket LED 110VAC DC | Integrated LED Indicator | Protection Circuit | by Clipsal
Brand: Clipsal
SKU: SCHRSLZRA3
Alternatively Known As: Relay Socket with LED 110V, Harmony RSL1 Relay Socket, Clipsal SCHRSLZRA3, LED Indication Relay Base, 110VAC DC Relay Socket
Technical Specifications
- Socket type: Separated socket for Harmony RSL1 relays
- Voltage rating: 110V AC/DC
- Integrated LED indicator for relay status
- Protection circuit included
- Connection: Spring terminals
- Mounting: DIN rail or panel mount
- Dimensions (H x L x W): 35mm x 80mm x 15mm
- Weight: 0.1 kg
Key Features
- Socket equipped with integrated LED indicator for status display
- Protection circuit for enhanced relay safety
- Compatible with Harmony RSL1 electromechanical relays
- Spring terminals for secure and reliable connections
- Supports both 110V AC and DC operation
Professional Installation Requirements
- Installation must be performed by a qualified electrician in accordance with local electrical regulations.
Applications
- Industrial automation panels
- Control cabinets
- Machinery requiring relay sockets with LED indication
- Electrical distribution boards
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED indication reduces the need for external pilot lights, saving energy.
- Reliable spring terminals minimize maintenance and replacement waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SEPARATED Socket LED 110VAC DC SCHRSLZRA3 is available for immediate purchase. Ideal for industrial automation, control panels, and machinery requiring reliable relay socket solutions.
