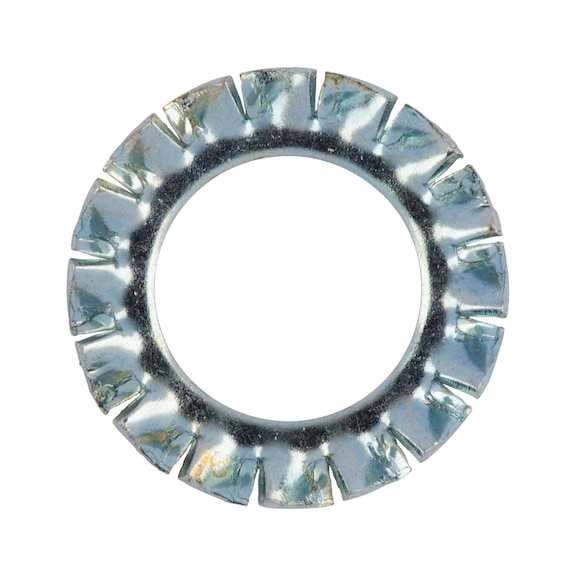

Serrated Lock Washer DIN 6798 | Externally Serrated Design | Zinc-Plated Steel | Blue Passivated | @Pack of 100 | by Wurth
Serrated Lock Washer DIN 6798 features an externally serrated design and is made from zinc-plated steel with blue passivation, ensuring enhanced locking capability and corrosion resistance. Ideal for mechanical fastening applications in industrial, automotive, and construction settings, this pack of 100 washers is perfect for secure screw and bolt locking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Lock Washer DIN 6798 | Externally Serrated Design | Zinc-Plated Steel | Blue Passivated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4296
Alternatively Known As: External Serrated Lock Washer, DIN 6798 Washer, Zinc Plated Lock Washer, Blue Passivated Washer
Technical Specifications
- Suitable for screw thread: M6
- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 11 mm
- Height (h1): 2.1 mm
- Thickness (s1): 0.7 mm
- Material: Steel
- Surface: Zinc plated with blue passivation
- Form: A
- Design: Externally serrated
- DIN Standard: 6798
- Dimensions (H x L x W): 2.1mm x 11mm x 11mm
- Weight: 0.05 kg
Key Features
- Externally serrated design for enhanced locking capability
- Shape A according to DIN 6798 standard
- Zinc-plated steel with blue passivation for corrosion resistance
- Compatible with M6 screw threads
- Can be stored in ORSY system for organized inventory management
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Industrial machinery assembly
- Automotive repairs and maintenance
- General engineering and construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Reusable in mechanical assemblies minimizing material consumption
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
