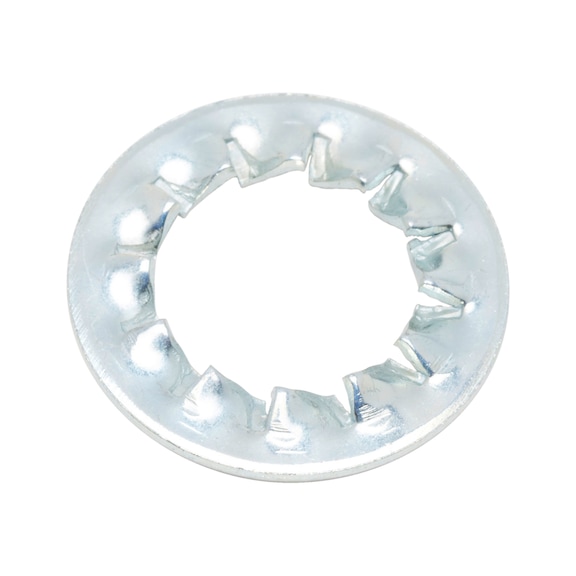

Serrated Lock Washer DIN 6798 | Internally Serrated Design | Zinc-Plated Steel | Blue Passivated | @Pack of 100 | by Wurth
Serrated Lock Washer DIN 6798 features an internally serrated design and is made from zinc-plated steel with blue passivation, ensuring excellent corrosion resistance. Ideal for mechanical fastening applications, this washer is perfect for industrial machinery assembly and automotive manufacturing, providing secure locking with M4 screw threads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Lock Washer DIN 6798 | Internally Serrated Design | Zinc-Plated Steel | Blue Passivated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4284
Alternatively Known As: Internal Serrated Lock Washer, DIN 6798 J Washer, Zinc Plated Lock Washer, Blue Passivated Washer
Technical Specifications
- Standard: DIN 6798
- Material: Steel
- Surface: Zinc plated with blue passivation
- Form: J
- Design: Internal serrating
- Suitable for screw thread: M4

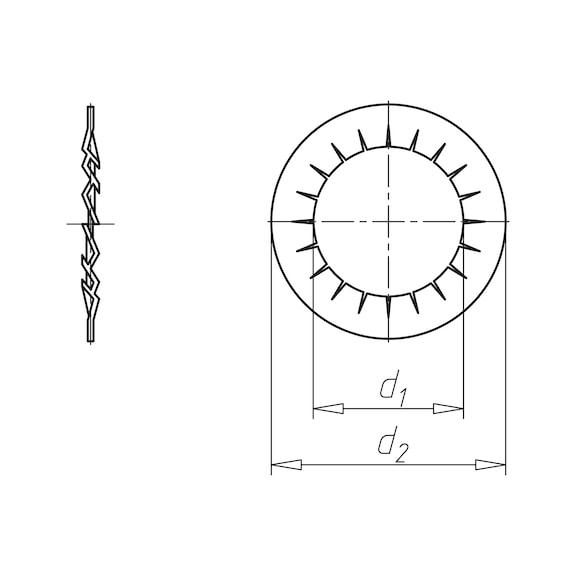

- Internal diameter (d1): 4.3 mm
- Outer diameter (d2): 8 mm
- Height: 1.5 mm
- Thickness: 0.5 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.5mm x 8mm x 8mm
- Weight: 0.02 kg
Key Features
- Internally serrated design for enhanced locking capability
- Zinc-plated steel with blue passivation for corrosion resistance
- Complies with DIN 6798 standard
- RoHS-compliant material
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening requiring secure locking
- Industrial machinery assembly
- Automotive and equipment manufacturing
- General purpose fastening with M4 screw threads
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Serrated Lock Washer is available for immediate purchase, ideal for industrial and mechanical fastening applications.
