Serrated Lock Washer DIN 6798 | Internally Serrated | Zinc-Plated Steel | Corrosion Resistant | @Pack of 100 | by Wurth

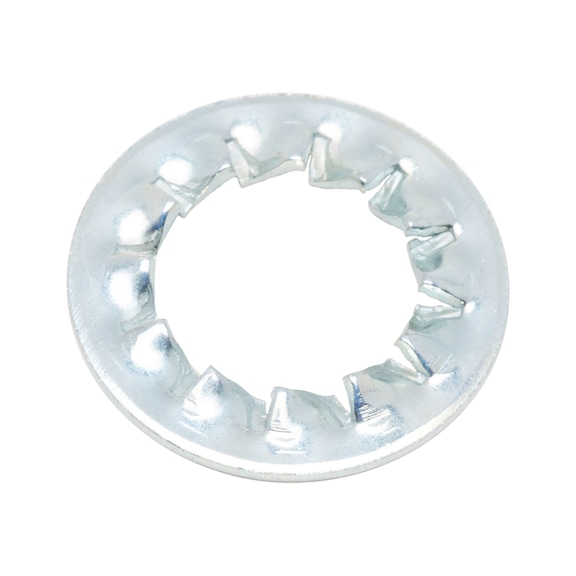

Serrated Lock Washer DIN 6798 features an internally serrated design and is made from zinc-plated steel, ensuring excellent corrosion resistance. Ideal for mechanical fastening applications, this washer provides secure locking for M6 screw threads, making it perfect for industrial machinery assembly and automotive repairs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Lock Washer DIN 6798 | Internally Serrated | Zinc-Plated Steel | Corrosion Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4286
Alternatively Known As: Internal Serrated Lock Washer, DIN 6798 J Washer, Zinc Plated Lock Washer, Blue Passivated Lock Washer
Technical Specifications
- Standard: DIN 6798
- Material: Steel
- Surface Finish: Zinc plated with blue passivation
- Form: J
- Design: Internal serrating
- Suitable for screw thread: M6

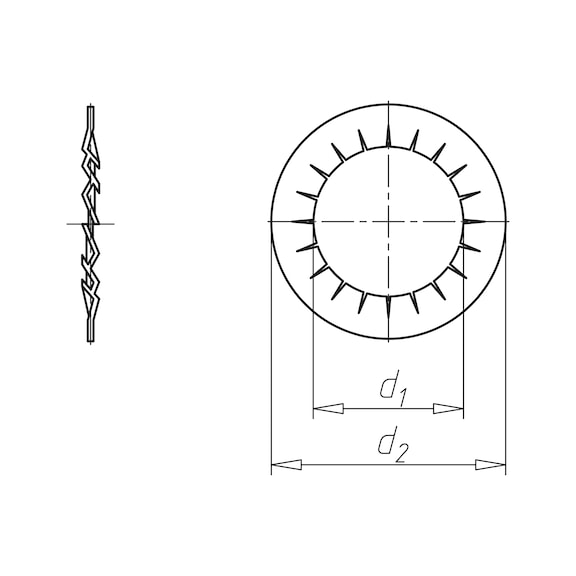

- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 11 mm
- Height: 2.1 mm
- Thickness: 0.7 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.1mm x 11mm x 11mm
- Weight: 0.05 kg
Key Features
- Internally serrated design for enhanced locking capability
- Zinc-plated steel with blue passivation for corrosion resistance
- Complies with DIN 6798 standard
- Suitable for M6 screw threads
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Industrial machinery assembly
- Automotive repairs and maintenance
- General engineering and construction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Serrated Lock Washer is available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
