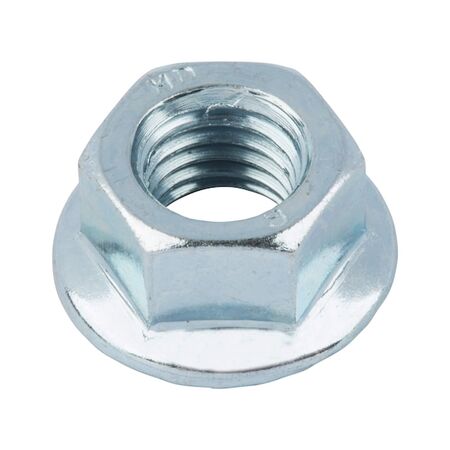

Serrated Locking Nut M12 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Serrated locking nut M12 designed for secure fastening in mechanical assemblies. Made from durable steel class 8, it features serrated locking teeth for mechanical interlocking, preventing self-loosening. Ideal for automotive, machinery, and industrial applications, this nut is zinc-plated with blue passivation for enhanced corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Locking Nut M12 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 394012
Alternatively Known As: Locking nut, Serrated flange nut, Self-locking nut, M12 locking nut
Technical Specifications
- Thread type x nominal diameter: M12
- Height: 12 mm
- Flange diameter: 26 mm
- External drive size: WS18
- Material: Steel
- Property class: 8
- Surface finish: Zinc plated with blue passivation
- Locking device operating principle: Serration
- Locking function: Mechanical interlocking to prevent self-loosening
- Pitch: 1.75 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 12mm x 26mm x 18mm
- Weight: 0.05 kg
Key Features
- Serrated locking teeth provide mechanical interlocking to prevent self-loosening
- Steel material with strength class 8 for high durability
- Zinc-plated with blue passivation for corrosion resistance
- Complies with DIN 6923 similar standards, replaced by EN 1661
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Serrated Locking Nut M12 Steel Class 8 Zinc-Plated 25 PCS is available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
