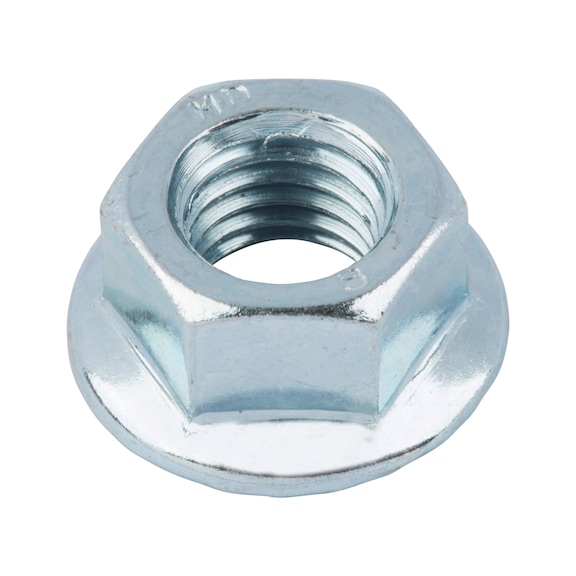

Serrated Locking Nut M14 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Serrated locking nut M14 designed for secure fastening in mechanical assemblies, featuring steel strength class 8 for high durability and zinc-plated with blue passivation for corrosion resistance. Ideal for automotive, machinery components, and industrial equipment, this nut prevents self-loosening through mechanical interlocking, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Locking Nut M14 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 394014
Alternatively Known As: Locking nut serrated, serrated flange nut, self-locking nut, DIN 6923 nut, EN 1661 nut
Technical Specifications
- Thread type x nominal diameter (D): M14
- Height (h1): 14 mm
- Flange diameter (dc): 29.9 mm
- External drive (s1): WS21
- Material: Steel
- Property class: 8
- Surface: Zinc plated with blue passivation
- Locking device operating principle: Serration
- Locking function: Locking against self-loosening by mechanical interlocking
- Pitch: 2 mm
- RoHS-compliant: Yes
- Standards: DIN 6923 similar, replaced by EN 1661
- Dimensions (H x L x W): 14mm x 30mm x 21mm
- Weight: 0.05 kg
Key Features
- Serrated locking teeth provide mechanical interlocking to prevent self-loosening
- Steel strength class 8 for high durability and load resistance
- Zinc-plated with blue passivation for corrosion resistance
- Complies with DIN 6923 similar standards, replaced by EN 1661
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery components
- Industrial equipment and structural applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth serrated locking nut M14 steel class 8 zinc-plated 25 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
