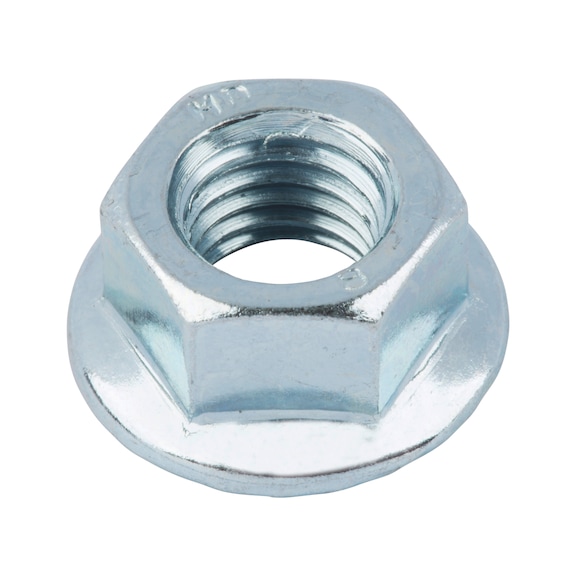

Serrated Locking Nut M16 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Serrated locking nut M16 designed for secure fastening in mechanical assemblies. Made from high-strength steel class 8, it features serrated locking teeth for mechanical interlocking, preventing self-loosening. The zinc-plated and blue passivated finish ensures excellent corrosion resistance, making it ideal for automotive, machinery, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Locking Nut M16 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 394016
Alternatively Known As: Locking nut M16, Serrated flange nut, Self-locking nut, Zinc plated locking nut
Technical Specifications
- Thread type x nominal diameter: M16
- Height: 16 mm
- Flange diameter: 34.5 mm
- External drive: WS24
- Material: Steel
- Property class: 8
- Surface finish: Zinc plated, blue passivated
- Locking device operating principle: Serration
- Locking function: Mechanical interlocking to prevent self-loosening
- Pitch: 2 mm
- RoHS-compliant: Yes
- Standards: DIN 6923 similar, replaced by EN 1661
- Dimensions (H x L x W): 16mm x 34.5mm x 24mm
- Weight: 0.05 kg
Key Features
- Serrated locking teeth provide mechanical interlocking to prevent self-loosening
- Steel material with property class 8 for high strength
- Zinc-plated with blue passivation for corrosion resistance
- Complies with DIN 6923 similar standards, replaced by EN 1661
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery components
- Industrial equipment and structural applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth serrated locking nut M16 zinc-plated blue passivated is available for immediate purchase, ideal for mechanical and industrial fastening applications.
