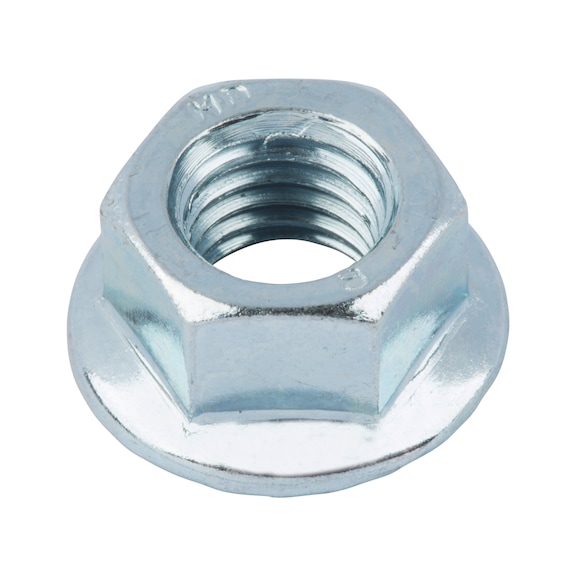

Serrated Locking Nut M4 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 100 | by Wurth
Serrated Locking Nut M4 is designed for secure fastening in mechanical assemblies, featuring a serration locking mechanism that prevents self-loosening. Made from high-strength steel with a property class of 8, this nut is zinc-plated and blue passivated for enhanced corrosion resistance, making it ideal for automotive, machinery, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Locking Nut M4 | Steel Class 8 | Zinc-Plated & Blue Passivated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 39404
Alternatively Known As: Serrated Lock Nut, Locking Nut M4, Zinc Plated Lock Nut, Blue Passivated Nut, Mechanical Lock Nut
Technical Specifications
- Thread type x nominal diameter (D): M4
- Height (h1): 4 mm
- Flange diameter (dc): 10.41 mm
- External drive (s1): WS7
- Standards: DIN 6923 similar (replaced by EN 1661)
- Material: Steel
- Property class: 8
- Surface: Zinc plated, blue passivated
- Locking device operating principle: Serration
- Locking function: Locking against self-loosening by mechanical interlocking
- Pitch: 0.7 mm
- Dimensions (H x L x W): 4mm x 7mm x 7mm
- Weight: 0.02 kg
Key Features
- Serration locking mechanism prevents self-loosening by mechanical interlocking
- Steel material with property class 8 for high strength
- Zinc-plated with blue passivation for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery components
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Serrated Locking Nut M4 Class 8 Zinc-Plated Blue Passivated 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
