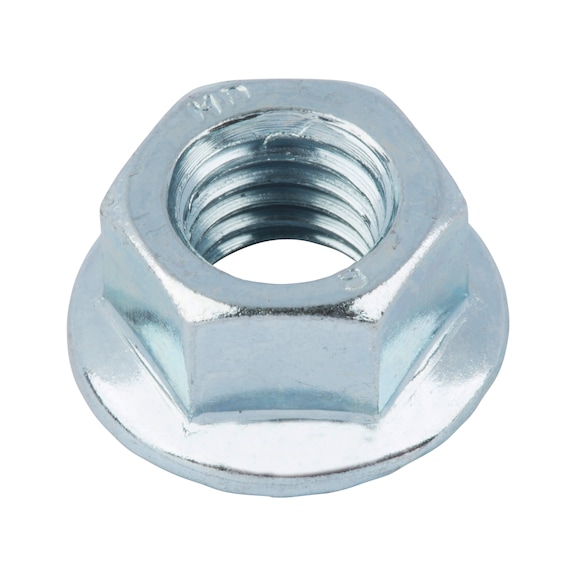

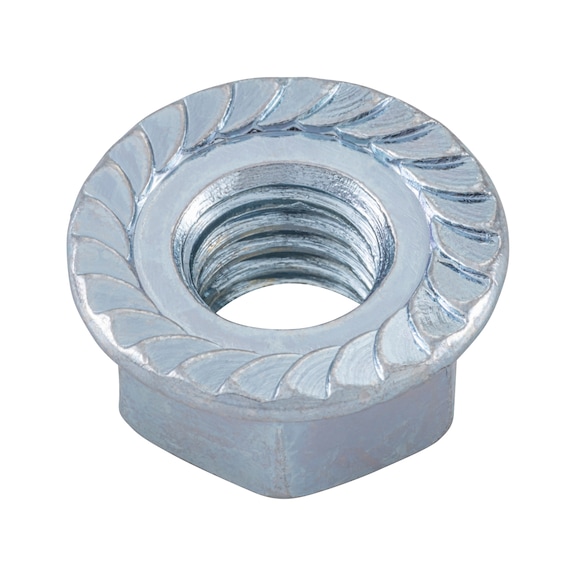

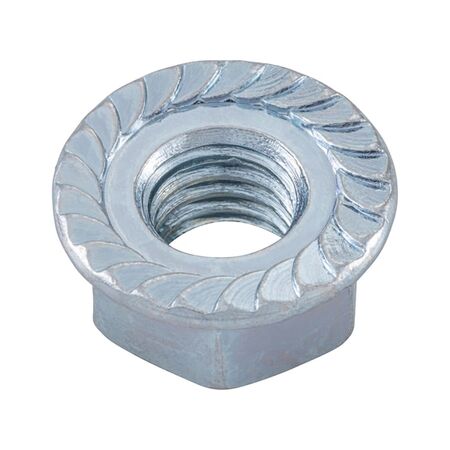

Serrated Locking Nut M5 | Steel Strength Class 8 | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Serrated locking nut M5 offers superior fastening with its steel strength class 8 and zinc-plated blue passivation for enhanced corrosion resistance. Ideal for mechanical assemblies and automotive applications, this nut features serrated locking teeth that provide mechanical interlocking to prevent self-loosening, ensuring secure and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Locking Nut M5 | Steel Strength Class 8 | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 39405
Alternatively Known As: Locking nut serrated, serrated flange nut, self-locking nut, anti-loosening nut
Technical Specifications

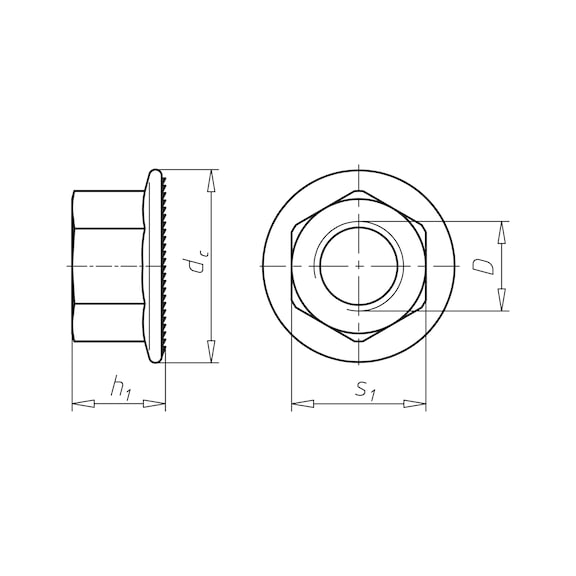

- Thread type x nominal diameter (D): M5
- Height (h1): 5 mm
- Flange diameter (dc): 11.8 mm
- External drive (s1): WS8
- Standards: DIN 6923 similar, replaced by EN 1661
- Material: Steel
- Property class: 8
- Surface: Zinc plated with blue passivation
- Locking device operating principle: Serration
- Locking function: Locking against self-loosening by mechanical interlocking
- Pitch: 0.8 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5mm x 8mm x 8mm
- Weight: 0.01 kg
Key Features
- Serrated locking teeth provide mechanical interlocking to prevent self-loosening
- Steel material with strength class 8 for high durability
- Zinc-plated with blue passivation for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth serrated locking nut M5 zinc-plated blue passivated is available for immediate purchase, ideal for mechanical and industrial fastening applications.
