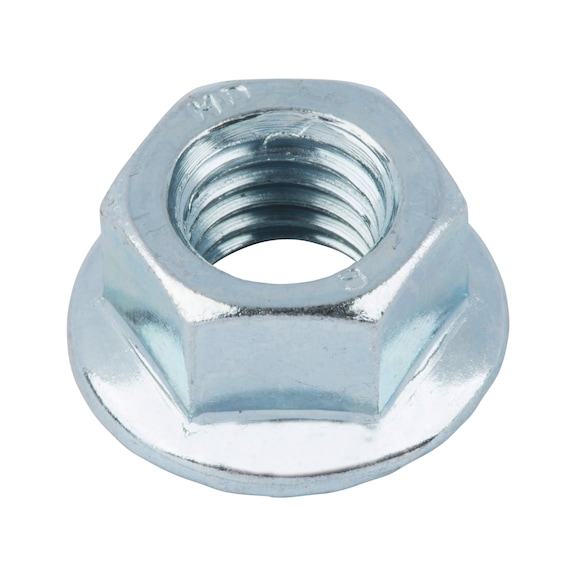

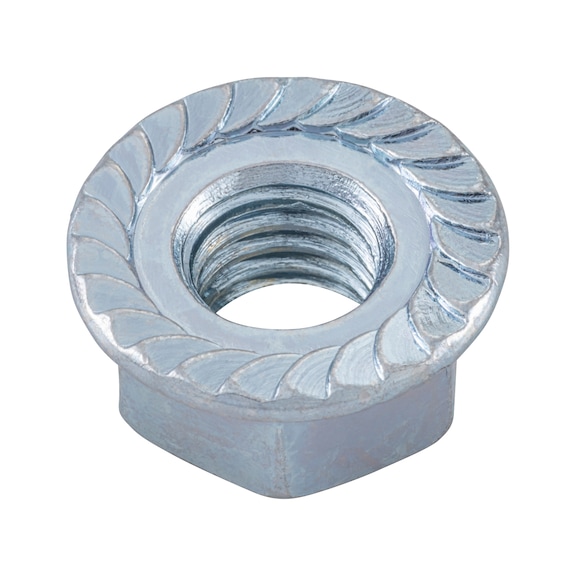

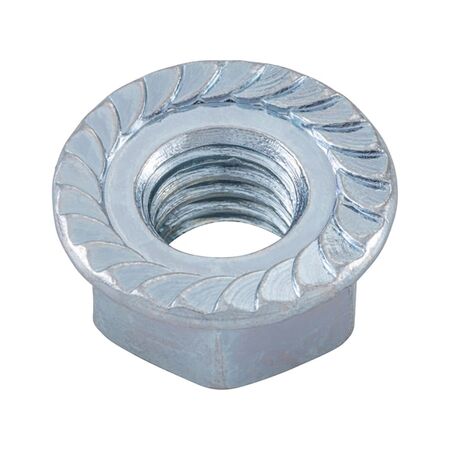

Serrated Locking Nut | Steel Strength Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Serrated locking nut designed for secure fastening in mechanical assemblies, featuring steel strength class 8 for high durability and load resistance. The zinc-plated and blue passivated finish ensures excellent corrosion resistance, making it ideal for automotive, machinery, and industrial applications. Perfect for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Locking Nut | Steel Strength Class 8 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 998693001
Alternatively Known As: Locking nut, serrated flange nut, self-locking nut, anti-loosening nut

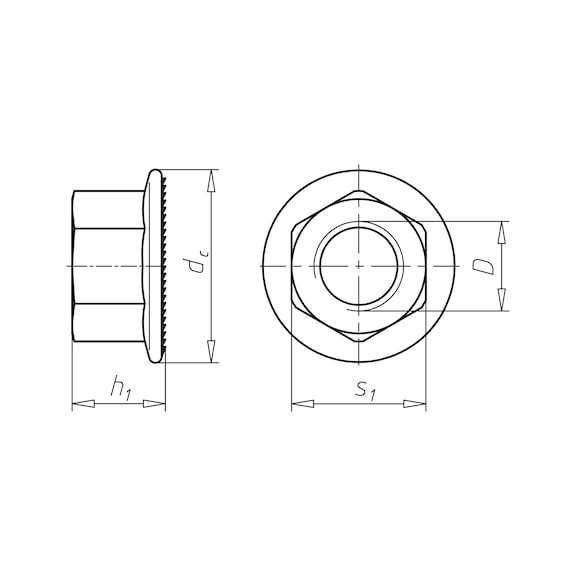

Technical Specifications
- Thread type x nominal diameter: M10
- Height: 10 mm
- Flange diameter: 21 mm
- External drive: WS15
- Material: Steel
- Property class: 8
- Surface finish: Zinc plated, blue passivated
- Locking device operating principle: Serration
- Locking function: Mechanical interlocking to prevent self-loosening
- Pitch: 1.25 mm
- Standards: DIN 6923 similar, replaced by EN 1661
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 21mm x 16mm
- Weight: 0.05 kg
Key Features
- Serrated locking teeth provide mechanical interlocking to prevent self-loosening
- Steel strength class 8 for high durability and load resistance
- Zinc-plated with blue passivation for corrosion resistance
- Complies with DIN 6923 similar standards, replaced by EN 1661
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical and industrial fastening applications.
