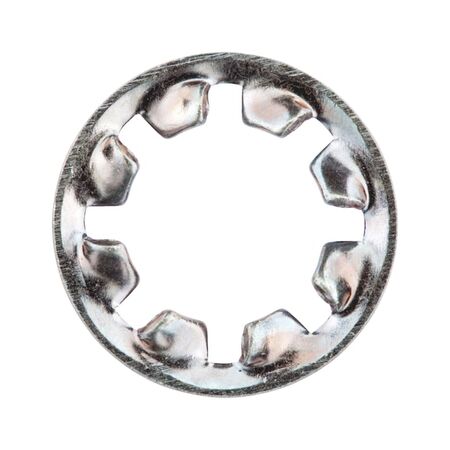

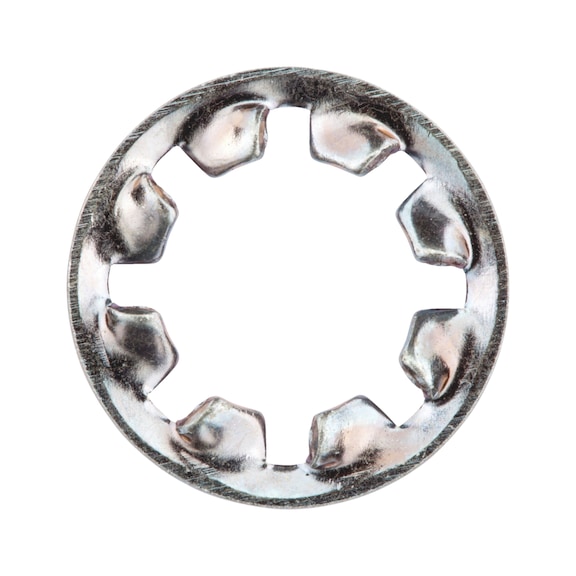

Serrated Spring Disc Fastener | Zinc Plated Steel | Inner Serrating Design | M3 Compatible | by Wurth
The Serrated Spring Disc Fastener is designed for secure fastening in mechanical assemblies, featuring a zinc plated steel construction for corrosion resistance and an inner serrating design that provides axial spring action. Ideal for M3 screw threads, this fastener is perfect for various industrial applications, ensuring reliable performance and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Spring Disc Fastener | Zinc Plated Steel | Inner Serrating Design | M3 Compatible | by Wurth
Brand: Wurth
SKU: 4243
Alternatively Known As: Serrated Spring Disc, Spring-Loaded Washer, Type J Serrated Washer, M3 Fastening Disc
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Form: Type J
- Design: Inner serrating
- Suitable for screw thread: M3
- Internal diameter (d1): 3.2 mm
- Outer diameter (d2): 6 mm
- Height (h1): 0.8 mm
- Thickness: 0.4 mm
- Standard: DIN 6797
- Dimensions (H x L x W): 0.8mm x 6mm x 6mm
- Weight: 0.1 kg
Key Features
- Serrated discs are spring-loaded fastening elements providing axial spring action
- Inner serrating design for secure fastening
- Zinc plated steel material for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper fastening and safety.
Applications
- Securing elements in mechanical assemblies
- Fastening components requiring axial spring action
- Suitable for use with M3 screw threads in various industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Wurth serrated spring-loaded disc fasteners are available for immediate purchase, ideal for securing mechanical components in industrial and manufacturing applications.
