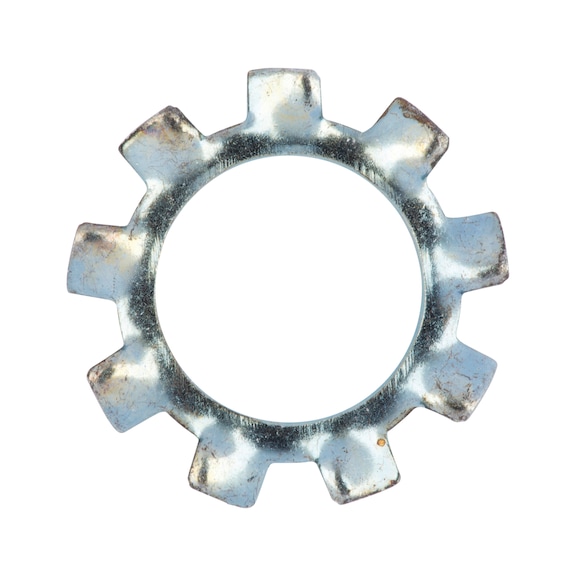

Serrated Washer Type A DIN 6797 | Externally Serrated Design | Zinc-Plated Steel | Corrosion Resistant | @Pack of 100 | by Wurth
Serrated Washer Type A DIN 6797 features an externally serrated design and zinc-plated steel construction, making it ideal for secure mechanical fastening applications. Perfect for industrial machinery and automotive assembly, this washer provides enhanced locking capability and corrosion resistance, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Washer Type A DIN 6797 | Externally Serrated Design | Zinc-Plated Steel | Corrosion Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4238
Alternatively Known As: Externally Serrated Spring Washer, DIN 6797 Washer, Type A Serrated Disc Washer
Technical Specifications
- Suitable for screw thread: M8
- Internal diameter (d1): 8.4 mm
- Outer diameter (d2): 15 mm
- Height (h1): 1.6 mm
- Thickness: 0.8 mm
- Material: Steel
- Surface: Zinc plated with blue passivation
- Form: Type A
- Design: Externally serrated
- DIN Standard: 6797
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.6mm x 15mm x 15mm
- Weight: 0.02 kg
Key Features
- Externally serrated design for enhanced locking capability
- Spring-loaded fastening element providing axial spring action
- Zinc-plated steel with blue passivation for corrosion resistance
- Complies with DIN 6797 Type A standards
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Industrial machinery assembly
- Automotive and construction fastening
- General purpose spring-loaded fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Serrated Washer Type A DIN 6797 zinc-plated steel 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
