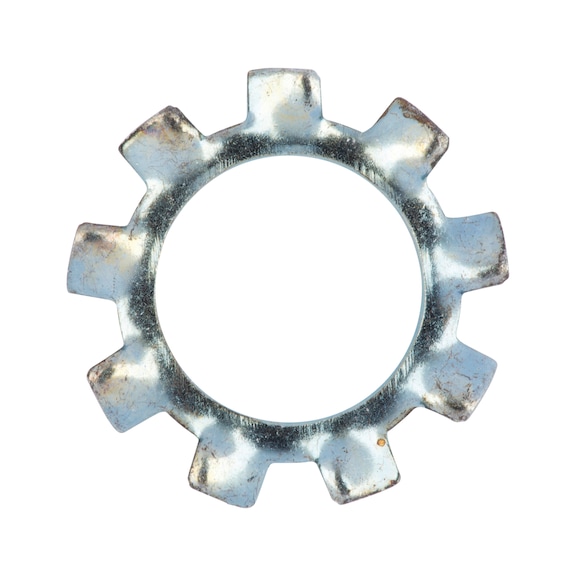

Serrated Washer Type A DIN 6797 | Externally Serrated Design | Zinc-Plated Steel | Corrosion Resistant | @Pack of 50 | by Wurth
Serrated Washer Type A DIN 6797 features an externally serrated design and zinc-plated steel construction, making it ideal for mechanical fastening applications. Perfect for automotive and construction uses, this washer prevents loosening of screws and bolts, ensuring secure connections. With corrosion resistance and compliance to DIN standards, it’s a reliable choice for M14 screw threads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Washer Type A DIN 6797 | Externally Serrated Design | Zinc-Plated Steel | Corrosion Resistant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 42314
Alternatively Known As: Externally Serrated Spring Washer, DIN 6797 Washer, Type A Serrated Disc Washer
Technical Specifications

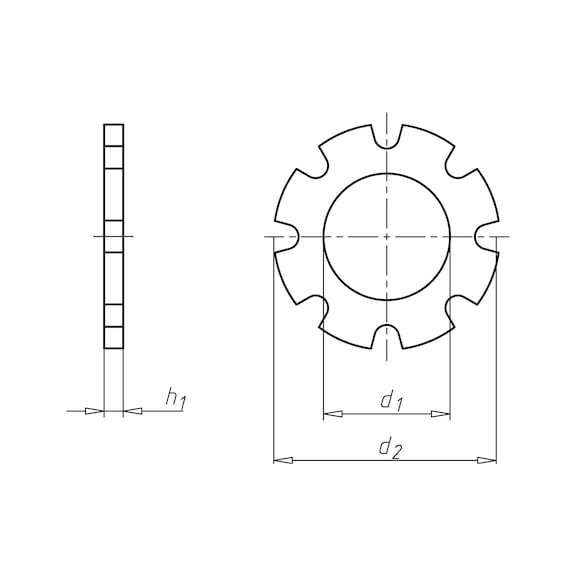

- Suitable for screw thread: M14
- Internal diameter (d1): 15 mm
- Outer diameter (d2): 24 mm
- Height (h1): 2 mm
- Thickness: 1 mm
- Material: Steel
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Form: Type A
- Design: Externally serrated
- DIN Standard: 6797
- Dimensions (H x L x W): 2mm x 24mm x 24mm
- Weight: 0.02 kg
Key Features
- Externally serrated design for enhanced grip
- Spring-loaded fastening element providing axial spring action
- Zinc-plated steel with blue passivation for corrosion resistance
- Complies with DIN 6797 Type A standards
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Used in mechanical fastening to prevent loosening of screws and bolts
- Suitable for automotive, machinery, and construction applications
- Ideal for use with M14 screw threads requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating and blue passivation enhance corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Serrated Washer Type A DIN 6797 zinc-plated steel 50 PCS is available for immediate purchase, ideal for mechanical fastening applications requiring secure and durable connections.
