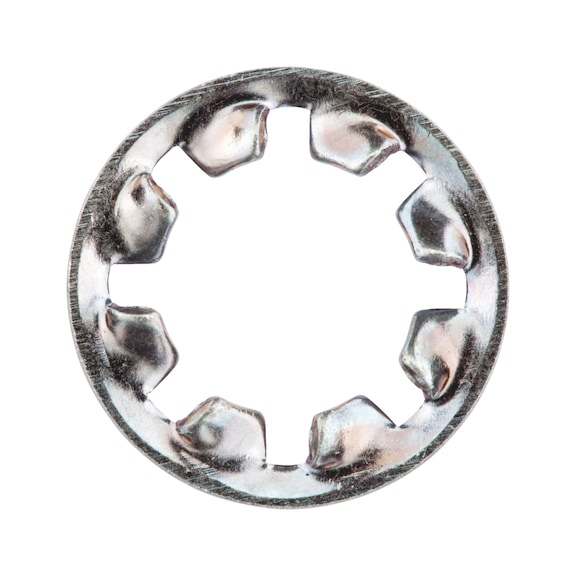

Serrated Washer Type J DIN 6797 | Internally Serrated Design | Zinc-Plated Steel | Corrosion Resistant | @Pack of 50 | by Wurth
Serrated Washer Type J DIN 6797 features an internally serrated design and zinc-plated steel construction, making it ideal for mechanical fastening applications. Perfect for automotive and construction uses, this washer prevents loosening of screws and bolts, ensuring secure fastening with M10 screw threads. Its corrosion-resistant properties enhance durability, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Washer Type J DIN 6797 | Internally Serrated Design | Zinc-Plated Steel | Corrosion Resistant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 42410
Alternatively Known As: Internal Serrated Washer, Spring Washer Type J, DIN 6797 Washer, Zinc Plated Serrated Disc
Technical Specifications
- Standard: DIN 6797
- Material: Steel
- Surface Finish: Zinc plated with blue passivation (A2K)
- Form: Type J
- Design: Internal serrating
- Suitable for screw thread: M10
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 18 mm
- Height (h1): 1.8 mm
- Thickness: 0.9 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.8mm x 18mm x 18mm
- Weight: 0.05 kg
Key Features
- Internally serrated design provides strong locking action
- Spring-loaded fastening element with axial spring action
- Zinc-plated steel with blue passivation for corrosion resistance
- Complies with DIN 6797 standard
- RoHS-compliant material
Professional Installation Requirements
- Installation should be performed by a qualified technician or tradesperson to ensure proper fastening and safety.
Applications
- Used in mechanical fastening to prevent loosening of screws and bolts
- Suitable for automotive, machinery, and construction applications
- Ideal for use with M10 screw threads requiring secure fastening
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating with blue passivation enhances corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Serrated Washer Type J DIN 6797 is available for immediate purchase, ideal for mechanical fastening applications requiring secure and reliable locking.
