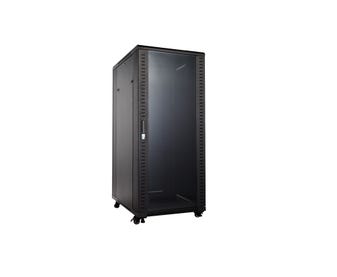

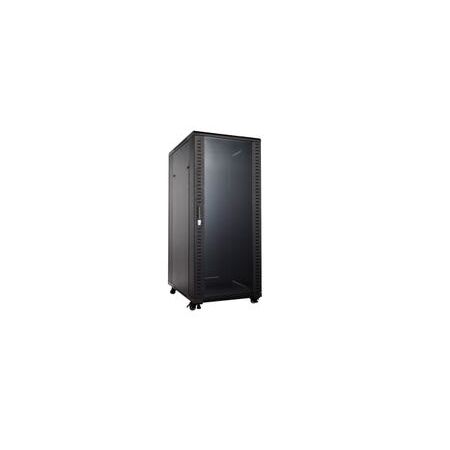

Server Rack 24RU | 600W Power Capacity | 900D Depth | 1255H Height by Cabac
This 24RU server rack features a 600W power capacity and 900D depth—ideal for data centers and IT environments. Built for efficient equipment storage, with a height of 1255H for optimal space utilization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Server Rack 24RU | 600W Power Capacity | 900D Depth | 1255H Height by Cabac
Brand: Cabac
SKU: CABR24RU9-S
Alternatively Known As: 19 inch server rack, 24RU server cabinet, floor mount server rack, network equipment rack
Technical Specifications
- Rack Units: 24RU
- Width: 600mm
- Depth: 900mm
- Height: 1255mm
- Material: SPCC cold rolled steel
- Rails Thickness: 2mm
- Frame Thickness: 1.2mm
- Side Panels Thickness: 1.0mm
- Finish: Powder coat
- IP Rating: IP20
- Standard Compliance: ANSI-310-D, IEC 297-2, DIN 41491/41494
- Dimensions (H x L x W): 1255mm x 900mm x 600mm
- Weight: 40 kg
Key Features
- Fully assembled IP20 rated rack
- Constructed from high quality SPCC cold rolled steel
- Rails thickness: 2mm, frame thickness: 1.2mm, side panels: 1.0mm
- Powder coat finish for durability
- Includes power rail, fan, fixed shelves, and cage nuts
- Designed and built to ANSI-310-D, IEC 297-2, DIN 41491/41494 standards
Professional Installation Requirements
- Professional installation is recommended to ensure proper assembly, grounding, and secure mounting of equipment within the rack.
Applications
- Data centers for housing servers and networking equipment
- Telecommunications rooms
- IT infrastructure setups in commercial and enterprise environments
- Industrial and laboratory equipment housing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction extends product lifespan reducing waste
- Powder coat finish is environmentally friendly compared to solvent-based paints
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac's warranty policy for details.
Available Now
The Cabac R19 Server Rack 24RU 600W 900D 1255H is available now for immediate purchase. Ideal for data centers, IT rooms, and telecommunications infrastructure.
