Trade Discount 17%

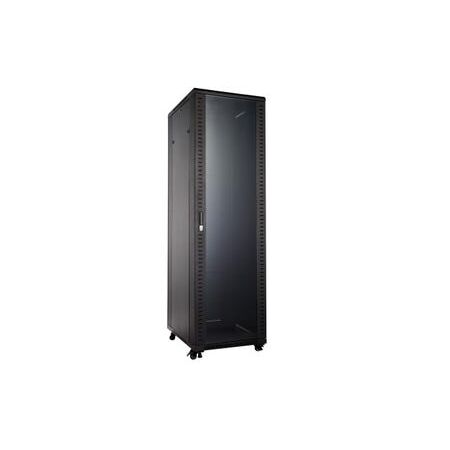

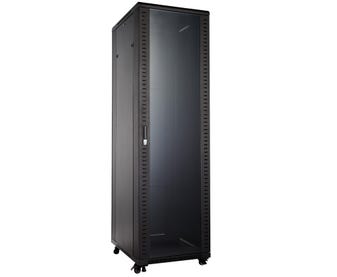

Server Rack 45RU | 600W Power Capacity | 800D Depth | 2188H Height by Cabac
This 45RU server rack features a 600W power capacity and 800D depth—ideal for data centers and IT infrastructure. Built for optimal organization and airflow, it ensures efficient equipment management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Server Rack 45RU | 600W Power Capacity | 800D Depth | 2188H Height by Cabac
Brand: Cabac
SKU: CABR45RU8-S
Alternatively Known As: 19 inch Server Rack Cabinet, Floor Mount Server Rack, Network Equipment Rack, Data Rack Cabinet
Technical Specifications
- Material: SPCC high quality cold rolled steel
- Rail thickness: 2mm
- Frame and doors thickness: 1.2mm
- Side panels thickness: 1.0mm
- Door: Fully tempered 5mm glass with earth lead and quick release hinge
- Load capacity: Maximum 800kg
- Fans: 4 fans included for 800mm deep racks
- PDU: 6-way 10A horizontal rail mounted with Australian 3 pin plug and sockets
- Cable management: 120mm space between front door and rail, horizontal and vertical accessories available
- Castors: Four heavy duty castors (2 with brackets)
- Levelling feet: Four adjustable
- Dimensions (H x L x W): 2188mm x 800mm x 600mm
- Weight: 80 kg
Key Features
- Sturdy frame made from high quality cold rolled steel with 2mm rails, 1.2mm frame and doors, 1mm side panels
- Fully tempered 5mm glass door with earth lead and quick release hinge
- Optional perforated doors and rear bifold perforated doors for increased airflow
- Removable side panels with keyed cam locks
- RU markings on front and rear rails for easy component placement
- Max load capacity of 800kg with easy to adjust rails
- Generous cable access on top and bottom with removable cable entry plates
- Fan box included with 4 fans for 800mm deep racks mounted inside top rack
- 6-way 10A horizontal rail mounted PDU with Australian 3 pin plug and sockets
- 120mm space between front door and rail for cable management with horizontal and vertical accessories
- Built-in vertical cable management for 800mm wide racks
- Four heavy duty castors (2 with brackets) and four adjustable levelling feet for positioning
- Comes fully assembled and IP20 rated
Professional Installation Requirements
- Professional installation recommended to ensure proper assembly, grounding, and secure mounting of equipment within the rack.
Applications
- Data centers for server and network equipment housing
- Telecommunications rooms
- IT infrastructure setups in commercial and industrial environments
- Any environment requiring secure, organized equipment mounting and cable management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction extends product lifespan reducing waste
- Efficient airflow design reduces cooling energy consumption
- Modular design allows for upgrades and reduces need for full replacements
Warranty Information
Warranty details available upon request from Cabac; typically includes coverage against manufacturing defects.
Available Now
The Cabac Server Rack 45RU 600W 800D 2188H is available now for immediate purchase. Ideal for data centers, telecommunications, and IT infrastructure requiring secure and organized equipment housing.
