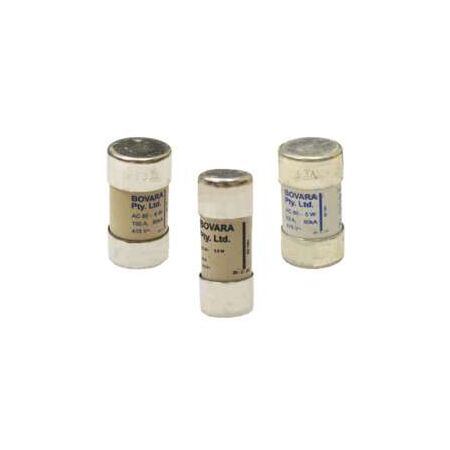

Service Fuse 100A 30x58mm 80kA 415V NSW Bovara
Bovara 100A service fuse link features 30mm diameter x 58mm body, 80kA breaking capacity at 415V AC to IEC 60269. Ideal for NSW service fuse carriers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100A HRC Service Fuse, NSW Service Fuse, ZR3 Fuse Link, Type 11b Fuse Link
Technical Specifications
- Manufacturer Part Number: ZR.3.100
- Fuse Type: Type 11b current-limiting HRC service fuse link
- Rated Current: 100 A
- Rated Voltage: 415 V AC
- Breaking Capacity: 80 kA
- Fuse Body Diameter: 30 mm
- Fuse Body Length: 58 mm
- Standard: IEC 60269-3
- Pack Quantity: 1 fuse link
- Compatibility: Compatible NSW service fuse carriers
- Dimensions (H x L x W): 30mm x 58mm x 30mm
- Weight: 0.1 kg
Key Features
- 100 A service fuse link for NSW applications
- 80 kA high rupturing capacity at 415 V AC
- Type 11b current-limiting HRC construction
- Designed for compatible Bovara ZR3 service fuse carriers
- Suitable for authority service protection and fault-current limitation
- Replaceable fuse-link format for service protection assemblies
Professional Installation Requirements
- Installation or replacement must be carried out by an appropriately licensed electrician or Accredited Service Provider in accordance with the current NSW Service and Installation Rules and relevant electricity distributor requirements. Service fuse equipment may be connected to energised supply equipment and must not be accessed by unqualified personnel.
Applications
- NSW authority service fuse carriers
- Service protection devices
- Meter and service protection assemblies where approved by the relevant electricity distributor
- Fault-current limiting equipment
- Electrical isolation assemblies
Standards & Compliance
- IEC 60269-3 for low-voltage fuse-links used by unskilled persons
- For NSW service protection applications, confirm acceptance against the current NSW Service and Installation Rules and electricity distributor requirements before installation
Environmental Benefits
- Replaceable fuse-link format allows the carrier assembly to remain in service when only the fuse element has operated, reducing component waste
- Metallic terminals and the ceramic fuse body can be directed to appropriate recycling or disposal streams at end of life
- High fault-current interruption can help limit damage to connected electrical equipment and reduce replacement waste
Warranty Information
No separate Bovara warranty period was located for this fuse link. Warranty claims are subject to Australian Consumer Law guarantees and the supplier's applicable terms and conditions.
Available Now
Available through authorised Bovara distributors in Australia.
