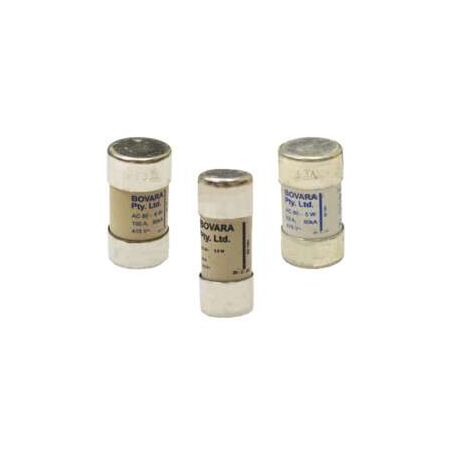

Service Fuse 80A 30x58mm 80kA 415V Bovara

BRAND: Bovara Electrical Equipment
SKU: ZR.3.80
$5.20 List price: $6.90
+ −
30 Days Return Electricians Unlock Trade Access
Bovara 80A service fuse link features 30 x 58mm body, 80kA breaking capacity at 415V AC to IEC 60269. Ideal for ZR3 service fuse carriers.

Alternatively Known As: 80A HRC Service Fuse, ZR3 Fuse Link, Authority Service Fuse, House Service Fuse Link

Technical Specifications
  • Rated Current: 80 A
  • Rated Voltage: 415 V AC
  • Breaking Capacity: 80 kA
  • Fuse Type: ZR3 service fuse link
  • Fuse Body: 30 mm diameter x 58 mm length
  • Compatibility: Bovara ZR3 service fuse carriers
  • Application Class: Authority service fuse, fault-current limiting and isolation
  • International Standard: IEC 60269
  • Type Testing: BS 1361:1971 type-tested ZR service fuse range
  • Dimensions (H x L x W): 30mm x 58mm x 30mm
  • Weight: 0.1 kg
Key Features
  • 80 A rating for service protection applications
  • High rupturing capacity of 80 kA at 415 V AC
  • Compact cylindrical fuse-link format
  • Designed for compatible Bovara ZR3 service fuse carriers
  • Suitable for authority service fuse assemblies
  • Supports fault-current limitation and electrical isolation
Professional Installation Requirements
  • Installation and replacement must be performed by a licensed electrician or authorised electrical-service technician. Isolate the supply and follow the relevant electricity network operator procedures before handling service fuses.
Applications
  • Electrical authority service protection
  • Residential and commercial service fuse assemblies
  • Fault-current limiting installations
  • Electrical isolation systems
  • Replacement of compatible ZR3 service fuse links
Standards & Compliance
  • IEC 60269 low-voltage fuse requirements as stated for the product
  • Applicable Australian requirements are covered by the AS 60269 series for low-voltage fuse-links; no separate AS/NZS certification claim was located for this specific fuse-link
Environmental Benefits
  • Replaceable fuse-link design allows the carrier assembly to remain in service after fuse operation, reducing material waste
  • Metal fuse components and conductive materials can be recovered through appropriate electrical waste recycling
  • Long service life and high fault-current interruption can help protect downstream equipment and reduce premature replacement
Warranty Information

No Bovara-specific warranty term was located for this fuse-link. Australian Consumer Law statutory consumer guarantees may apply.

Available Now

Available through authorised Bovara distributors in Australia.
