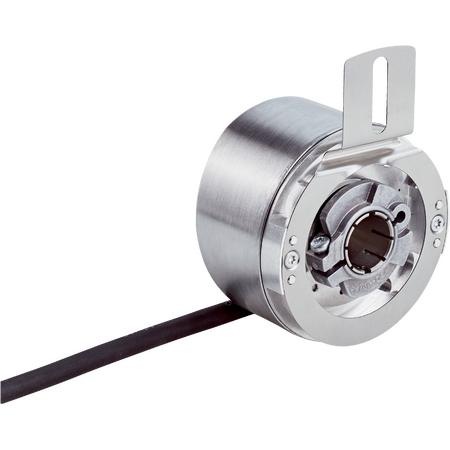

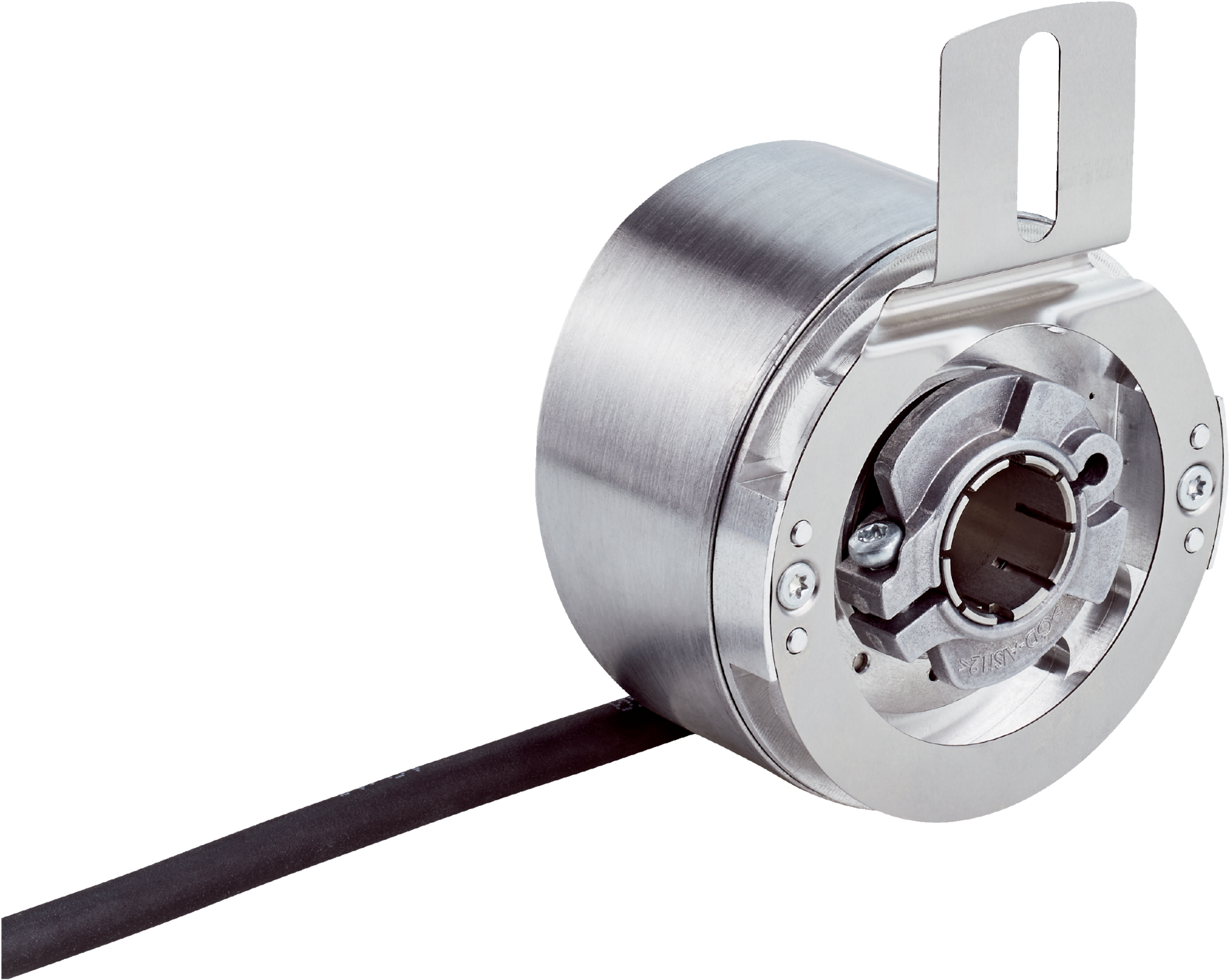

SFM60-HKKB1K02 | Motor feedback systems
The SICK SFM60-HKKB1K02 motor feedback system offers high precision absolute position sensing with robust construction and advanced HIPERFACE® communication for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SFM60-HKKB1K02 | Motor feedback systems
Brand: SICK
SKU: 1083535
Alternatively Known As: Motor encoder, Absolute rotary encoder, HIPERFACE encoder, SFM60 encoder, Motor position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3 seconds (with 12-bit interpolation)
- Integral non-linearity: ±45 seconds
- Differential non-linearity: ±7 seconds
- Operating speed (absolute position): ≤ 6,000 min⁻¹
- Available memory: 1,792 Byte
- System accuracy: ±52 seconds
- Code type: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection: 8-wire cable, 1.5 m length
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: < 80 mA
- Output frequency sine/cosine: ≤ 200 kHz
- Shaft: Blind hollow shaft, 8 mm diameter, stainless steel
- Flange: Zinc diecast
- Housing: Aluminum die cast
- Moment of inertia rotor: 40 gcm²
- Operating speed max: ≤ 9,000 min⁻¹
- Angular acceleration max: ≤ 500,000 rad/s²
- Operating torque: 0.6 Ncm at 20 °C
- Start up torque: +0.8 Ncm at 20 °C
- Permissible static movement: ±0.3 mm axial, ±0.5 mm radial
- Permissible dynamic movement: ±0.2 mm axial, ±0.1 mm radial
- Ball bearing life: 3.6 x 10⁹ revolutions
- Operating temperature: -40 °C to +115 °C
- Storage temperature: -40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions and 134,217,728 total steps
- System accuracy of ±52 seconds
- Robust IP65 rated aluminum die cast housing
- Operating temperature range from -40 °C to +115 °C
- Blind hollow shaft with 8 mm diameter made of stainless steel
- Communication via HIPERFACE® interface
- Low current consumption below 80 mA
- High operating speed up to 6,000 min⁻¹ for absolute position
- Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical wiring standards to ensure proper connection and compliance with safety regulations.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy angular position sensing
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SFM60-HKKB1K02 motor feedback system is available for immediate purchase, ideal for industrial automation and precision motor control applications.
