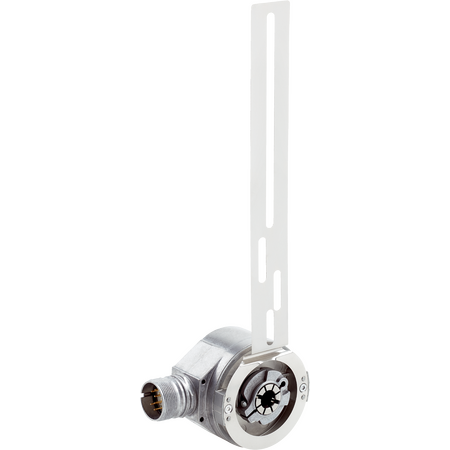

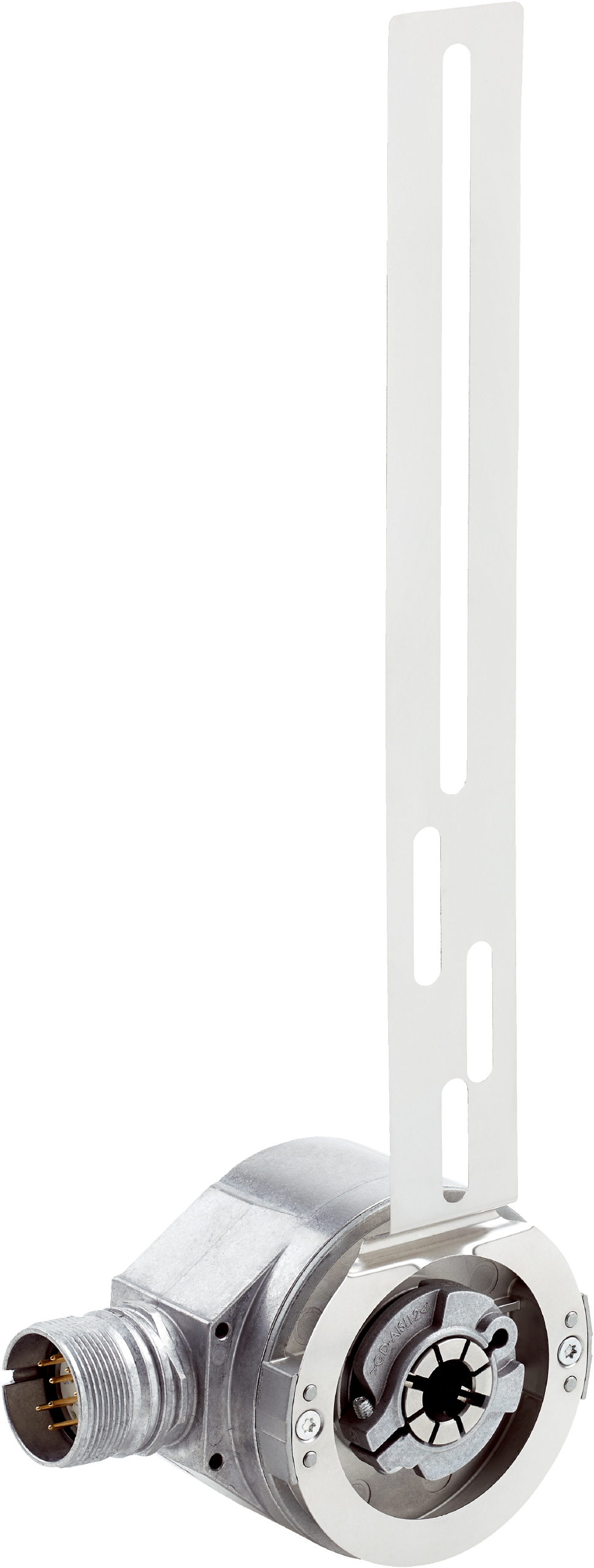

Product Name/Title: SFM60-HPAT3K02 | Motor feedback systems
Brand: SICK
SKU: 1081813
Alternatively Known As: Motor encoder, Absolute rotary encoder, HIPERFACE encoder, Hollow shaft encoder
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤6,000 min⁻¹ for absolute position
- Memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary, rising sequence for clockwise rotation
- Communication interface: HIPERFACE®
- Connection: Male M23, 12-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: <80 mA (no load)
- Output frequency sine/cosine: ≤200 kHz
- Shaft: Through hollow shaft, 15 mm diameter, stainless steel
- Flange: Zinc diecast
- Housing: Aluminum die cast
- Operating temperature: –40 °C to +115 °C
- Enclosure rating: IP65 with connector
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Ball bearing life: 3.6 x 10⁹ revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions and 134,217,728 total steps
- Robust stainless steel hollow shaft with 15 mm diameter
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- IP65 rated enclosure for protection against dust and water
- Low current consumption below 80 mA
- Communication via HIPERFACE® interface
- High system accuracy of ±52″ and integral non-linearity typically ±45″
- Wide operating temperature range from –40 °C to +115 °C
- Long ball bearing life of 3.6 x 10⁹ revolutions
