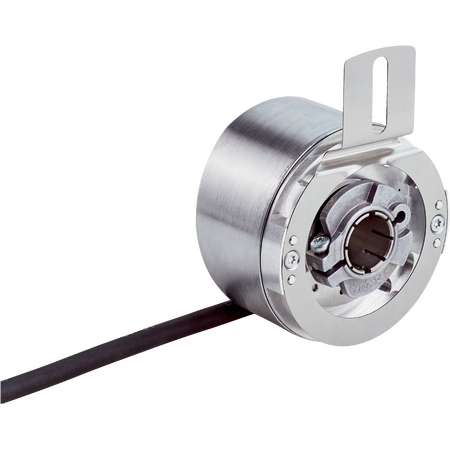

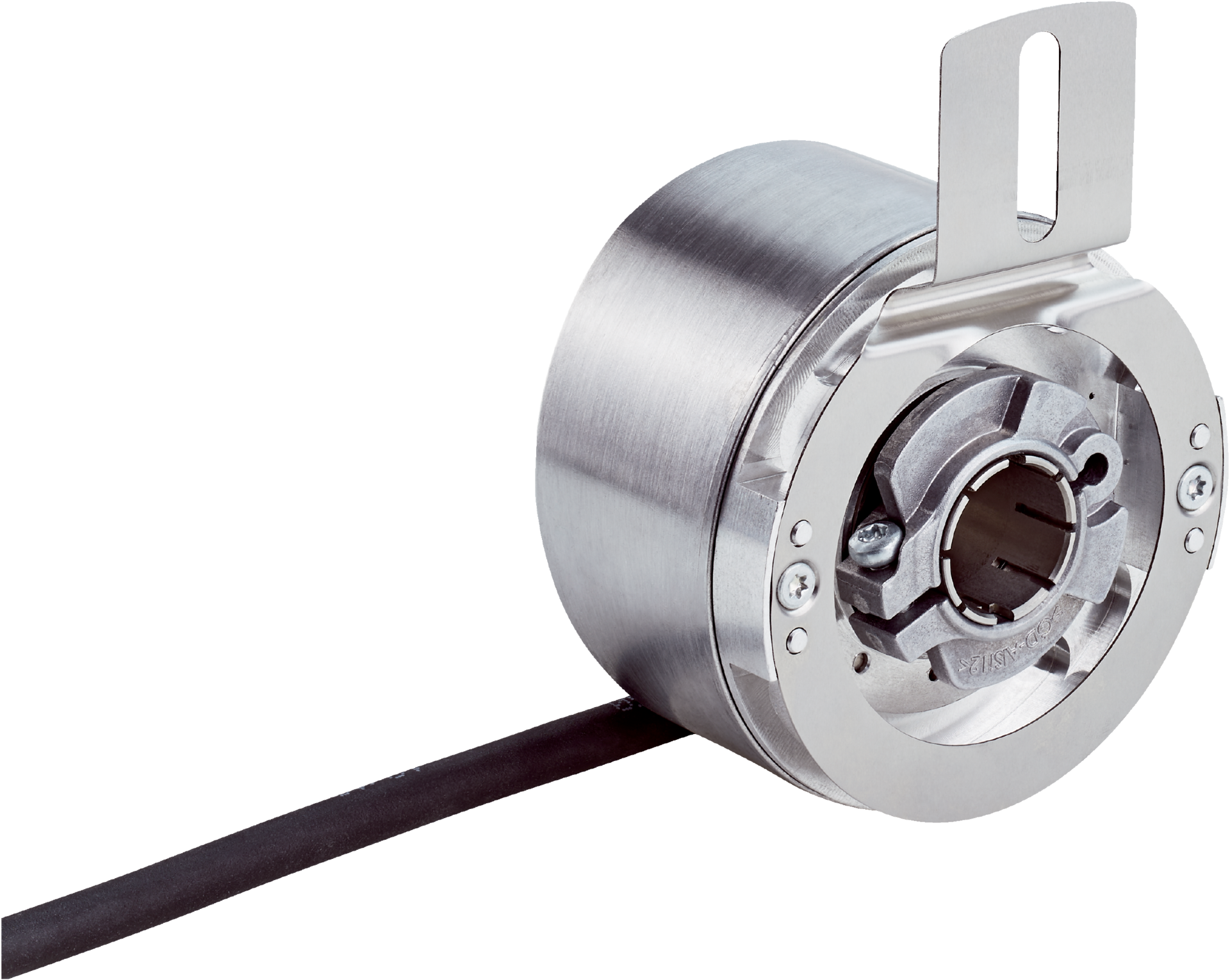

SFM60-HPKT1K02 | Motor feedback systems
The SICK SFM60-HPKT1K02 motor feedback system offers high precision absolute position sensing with robust IP65 protection, ideal for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SFM60-HPKT1K02 | Motor feedback systems
Brand: SICK
SKU: 1123357
Alternatively Known As: Rotary Encoder, Absolute Encoder, Motor Position Sensor, HIPERFACE Encoder
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3 seconds (with 12-bit interpolation)
- Integral non-linearity: ±45 seconds
- Differential non-linearity: ±7 seconds
- Operating speed: ≤6,000 min⁻¹ (absolute position reliable)
- Memory area: 1,792 Byte
- System accuracy: ±52 seconds
- Code type: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection: 8-wire cable, 1.5 m length
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: <80 mA (no load)
- Output frequency sine/cosine: ≤200 kHz
- Shaft diameter: 15 mm stainless steel
- Flange material: Zinc diecast
- Housing material: Aluminum die cast
- Moment of inertia rotor: 40 gcm²
- Operating torque: 0.6 Ncm at 20 °C
- Start up torque: 0.8 Ncm at 20 °C
- Permissible static movement: ±0.3 mm axial, ±0.5 mm radial
- Permissible dynamic movement: ±0.2 mm axial, ±0.1 mm radial
- Ball bearing life: 3.6 x 10⁹ revolutions
- Operating temperature: –40 °C to +115 °C
- Storage temperature: –40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions and 134,217,728 total steps
- System accuracy of ±52 seconds
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Robust construction with aluminum die cast housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Low current consumption below 80 mA
- Communication via HIPERFACE® interface
- Wide operating temperature range from –40 °C to +115 °C
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical safety standards.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy rotary position sensing
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFM60-HPKT1K02 motor feedback system is available for immediate purchase, ideal for industrial automation and precision motion control applications.
