SFS60-H1AT0K02 | Motor feedback systems
The SICK SFS60-H1AT0K02 motor feedback system offers high precision absolute position sensing with robust construction and reliable performance for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

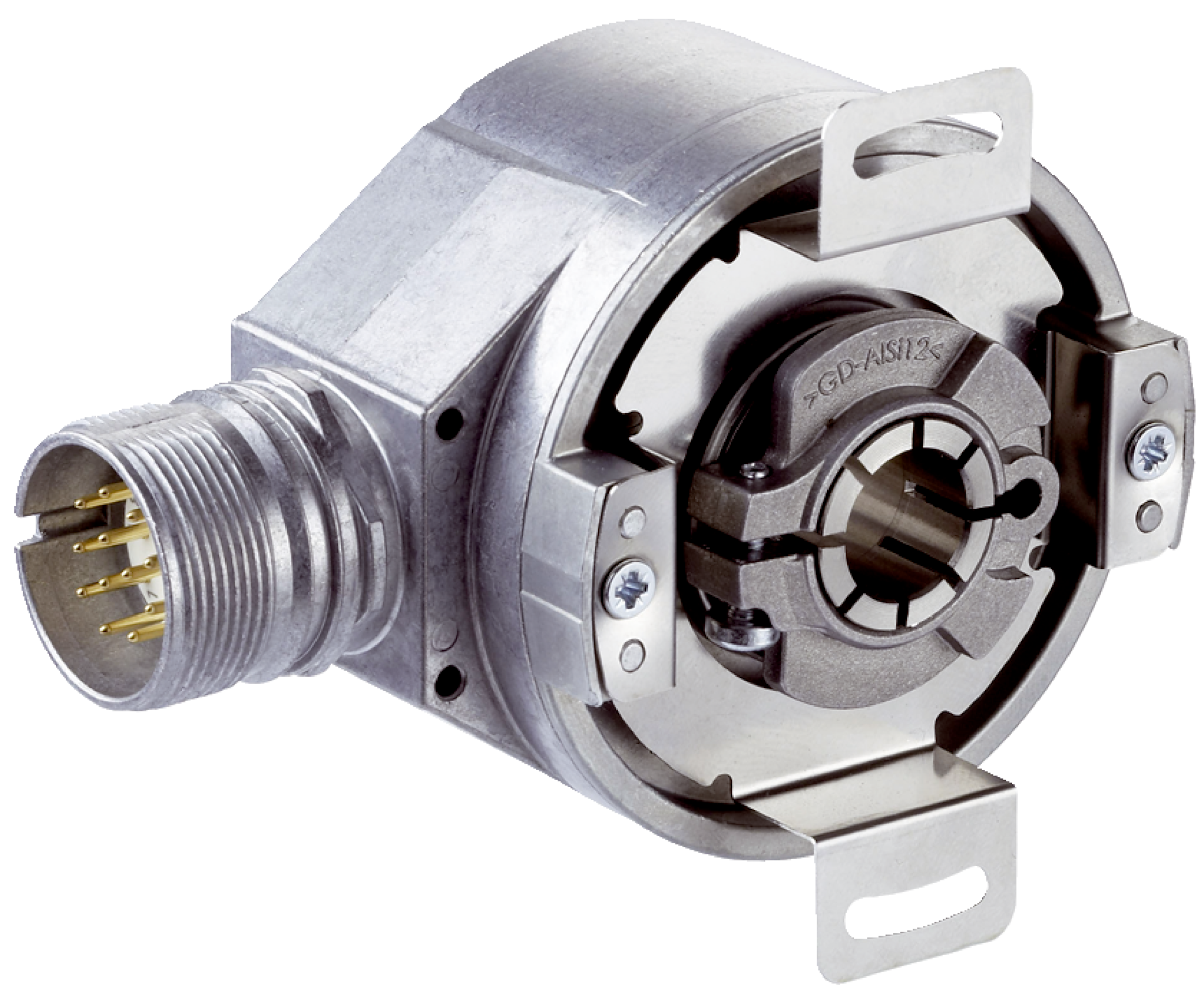

Product Name/Title: SFS60-H1AT0K02 | Motor feedback systems
Brand: SICK
SKU: 1078707
Alternatively Known As: Motor encoder, rotary encoder, absolute encoder, shaft encoder, HIPERFACE encoder
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤6,000 min⁻¹ for absolute position
- Available memory area: 1,792 Byte
- System accuracy: ±52″
- Type of code: Binary, rising code sequence for clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: Male M23, 12-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: <80 mA without load
- Output frequency for sine/cosine signals: ≤200 kHz
- Shaft diameter: 3/8″ stainless steel hollow shaft
- Flange material: Zinc diecast
- Housing material: Aluminum die cast
- Moment of inertia of rotor: 40 gcm²
- Operating torque: 0.6 Ncm at +20 °C
- Start up torque: +0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm axial, ±0.5 mm radial
- Permissible dynamic movement: ±0.2 mm axial, ±0.1 mm radial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –40 °C to +115 °C
- Storage temperature range: –40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector inserted
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- High system accuracy of ±52″
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Through hollow shaft with 3/8″ diameter made of stainless steel
- IP65 rated enclosure with mating connector inserted
- Low current consumption below 80 mA
- Communication interface: HIPERFACE®
- Operating temperature range from –40 °C to +115 °C
- Robust aluminum die cast housing and zinc diecast flange
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy shaft position sensing
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SFS60-H1AT0K02 motor feedback system is available for immediate purchase, ideal for industrial automation and precision motion control applications.
