SFS60-HRAT0K02 | Motor feedback systems
The SICK SFS60-HRAT0K02 motor feedback system offers precise absolute position sensing with high accuracy and robust design, suitable for demanding industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

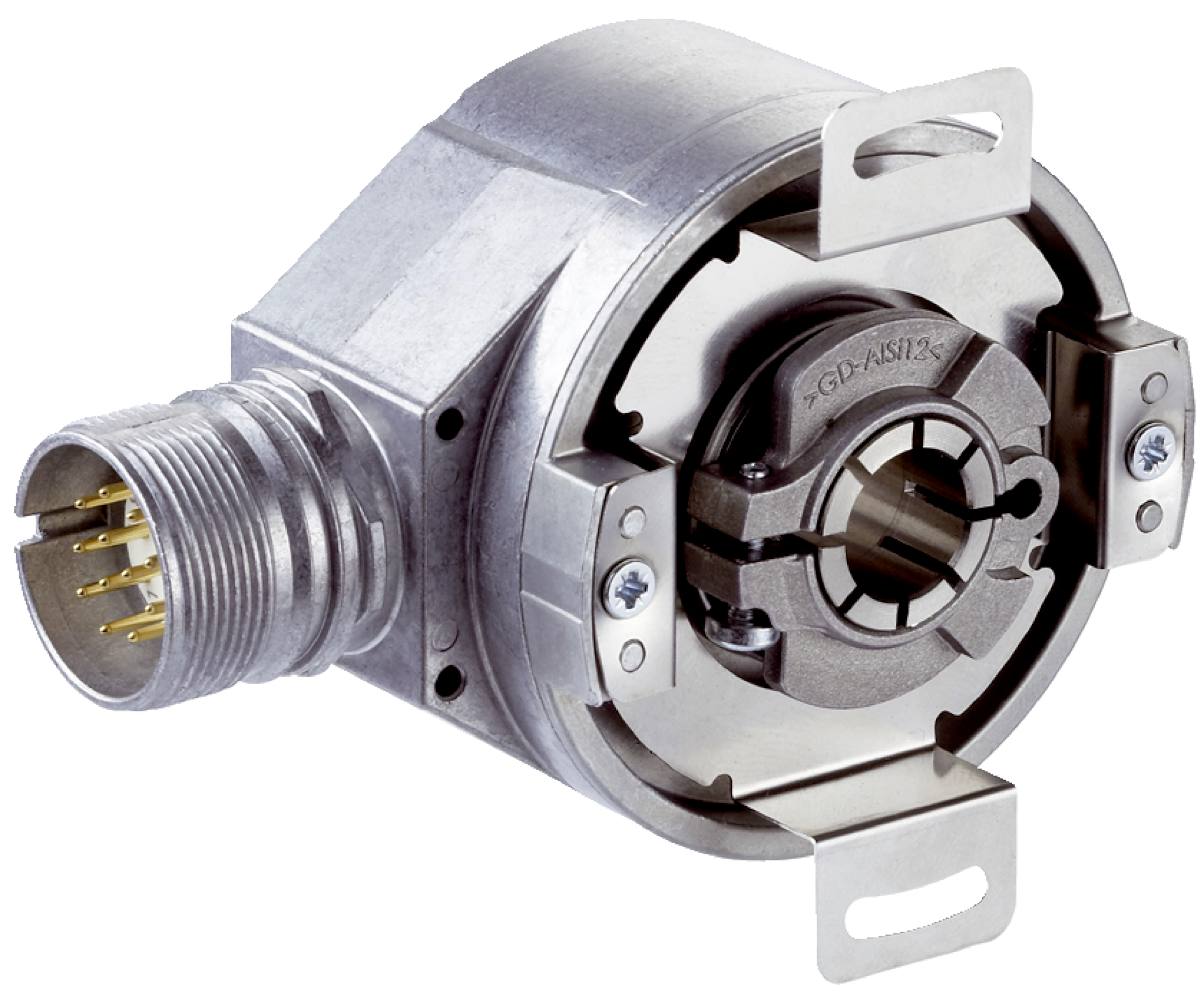

Product Name/Title: SFS60-HRAT0K02 | Motor feedback systems
Brand: SICK
SKU: 1050530
Alternatively Known As: Motor encoder, Absolute rotary encoder, HIPERFACE encoder, Shaft position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Absolute ascertainable revolutions: 1
- Total steps: 32,768
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: ±45 ″
- Differential non-linearity: ±7 ″
- Operating speed: ≤6,000 min⁻¹ for absolute position
- Memory area: 1,792 Byte
- System accuracy: ±52 ″
- Code type: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection: Male M23, 12-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: <80 mA (no load)
- Output frequency sine/cosine: ≤200 kHz
- Shaft: Through hollow shaft, 14 mm diameter, stainless steel
- Flange: Zinc diecast
- Housing: Aluminum die cast
- Moment of inertia rotor: 40 gcm²
- Operating torque: 0.6 Ncm at +20 °C
- Start up torque: +0.8 Ncm at +20 °C
- Permissible static movement: ±0.3 mm axial, ±0.5 mm radial
- Permissible dynamic movement: ±0.2 mm axial, ±0.1 mm radial
- Ball bearing life: 3.6 x 10⁹ revolutions
- Operating temperature: –40 °C to +115 °C
- Storage temperature: –40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- High system accuracy of ±52 ″
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Binary code type for absolute value with HIPERFACE® communication interface
- Robust aluminum die cast housing with IP65 enclosure rating
- Operating temperature range from –40 °C to +115 °C
- Low current consumption below 80 mA
- Through hollow shaft with 14 mm diameter made of stainless steel
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy shaft position sensing
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High reliability reduces downtime and waste from replacements
- Energy-efficient operation with low current consumption
- Durable materials extend product lifecycle
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFS60-HRAT0K02 motor feedback system is available for immediate purchase, ideal for industrial automation and precision motion control applications.
