SGS4-F060P7PS1W02 Automation light grids

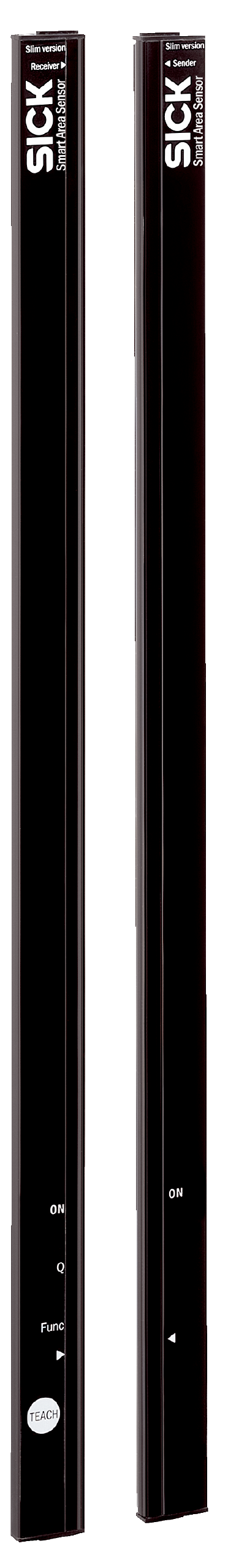

The SICK SGS4-F060P7PS1W02 is a high-performance automation light grid sensor featuring 16 parallel infrared beams
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

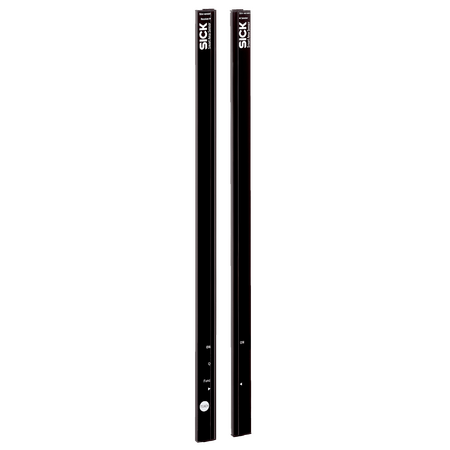

Product Name/Title: SGS4-F060P7PS1W02 | Automation light grids
Brand: SICK
SKU: 1214855
Alternatively Known As: Safety light curtain, Automation light grid sensor, Industrial light barrier, Presence detection sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Number of beams: 16
- Detection height: 600 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Initialization time: 1 second
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Response time: 19 ms
- Operating temperature: -25 °C to +55 °C
- Shock resistance: 10 g
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 672mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- 16 parallel infrared light beams with 45 mm minimum detectable object size
- Detection height of 600 mm with a maximum range of 10 m
- PNP switching output with short-circuit and reverse polarity protection
- IP65 rated housing for dust and water resistance
- LED indication for operational status
- Shock resistance up to 10 g and vibration resistance up to 5 g
- Optical synchronization and no alignment aid required
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment, connection, and compliance with safety standards.
Applications
- Industrial automation safety light grid applications
- Object detection and presence monitoring in manufacturing lines
- Safety perimeter guarding in automated machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable IP65 rated housing reduces need for frequent replacements
- Supports safer automated processes reducing waste and accidents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SGS4-F060P7PS1W02 Automation Light Grid Sensor is available for immediate purchase, ideal for industrial automation safety and object detection applications.
