SGS4-F092N3PS2T00 | Automation light grids
The SICK SGS4-F092N3PS2T00 is an automation light grid sensor featuring 24 parallel infrared beams for reliable object detection and safety applications in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

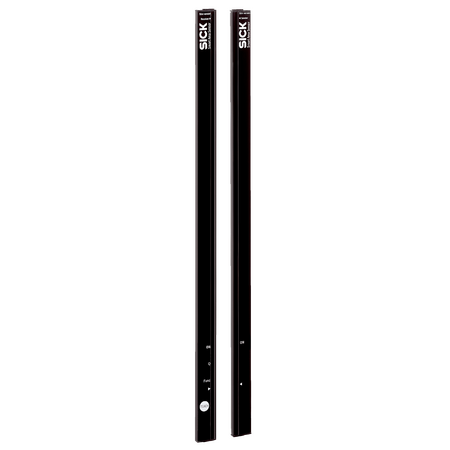

Product Name/Title: SGS4-F092N3PS2T00 | Automation light grids
Brand: SICK
SKU: 1212947
Alternatively Known As: Automation light grid, Safety light curtain, Infrared light grid sensor, Machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Light source: Infrared light at 950 nm wavelength
- Power consumption receiver: ≤ 70 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 second
- Switching output: NPN
- Inputs: Teach-in input (receiver), Test input (sender) with HIGH = 10 V to 30 V, LOW < 5 V
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Pulse frequency: 500 kHz
- Maximum range: 4 m
- Operating range: 3 m
- Response time: 19 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Ambient light immunity: Direct 100,000 lx, Indirect 150,000 lx
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 992mm x 12mm x 37mm
- Weight: 0.12 kg
Key Features
- 24 parallel infrared light beams with 40 mm beam separation
- Minimum detectable object size of 45 mm
- Detection height of 920 mm
- Teach-in button for easy parameterization
- NPN switching output with output current up to 100 mA
- IP65 rated enclosure for dust and water protection
- Shock resistance of 10 g and vibration resistance of 5 g
- Optical synchronization and LED indication
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation safety systems
- Machine guarding and perimeter protection
- Object detection in manufacturing lines
- Access control and safety light curtains
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with DC 24 V supply voltage
- Durable PMMA housing reduces material waste
- Long operational life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SGS4-F092N3PS2T00 Automation Light Grid is available for immediate purchase, ideal for industrial safety and automation applications.
