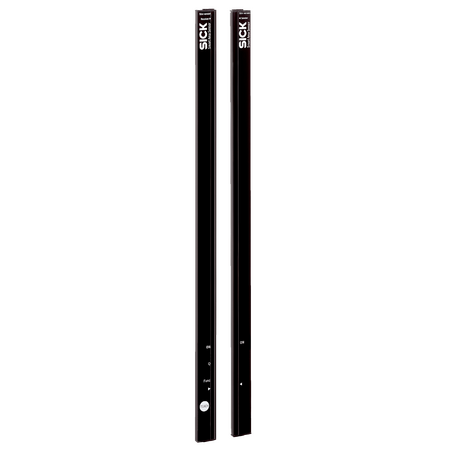

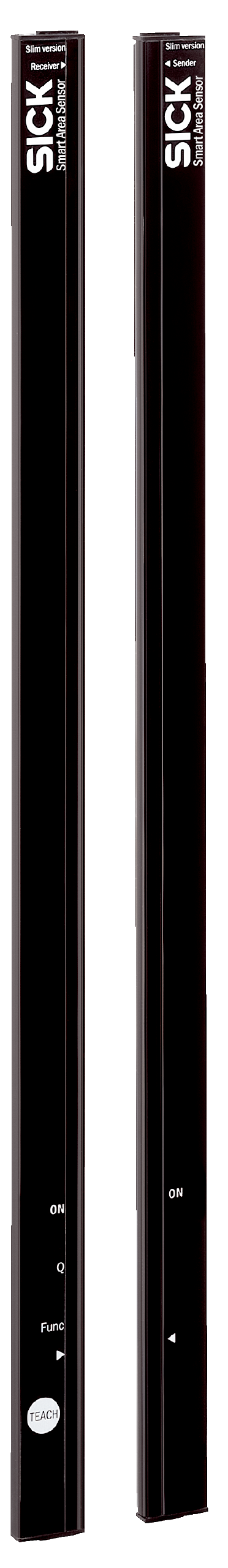

SGS4-S092P7TC1W02 | Automation light grids
The SICK SGS4-S092P7TC1W02 automation light grid sensor features 24 parallel infrared beams for reliable object detection and machine safety in industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SGS4-S092P7TC1W02 | Automation light grids
Brand: SICK
SKU: 1211305
Alternatively Known As: Safety light curtain, light grid sensor, automation light barrier, machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm (parallel beam)
- Number of beams: 24
- Detection height: 920 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 38 ms (parallel beam coded version)
- Operating range: 7 m
- Maximum range: 10 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M12 male connector, 4-pin
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 992mm x 8mm x 25mm
- Weight: 0.12 kg
Key Features
- 24 parallel infrared light beams with 45 mm minimum detectable object size
- Slim optical light exit design with 920 mm detection height
- PNP switching output with 100 mA max output current
- High ambient light immunity up to 150,000 lx indirect
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
- Cable connection with M12 male 4-pin connector
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment and integration into safety systems.
Applications
- Industrial automation safety systems
- Machine guarding and perimeter protection
- Automated production lines requiring object detection
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces material waste and extends product life
- High reliability reduces downtime and resource waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SGS4-S092P7TC1W02 automation light grid sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
