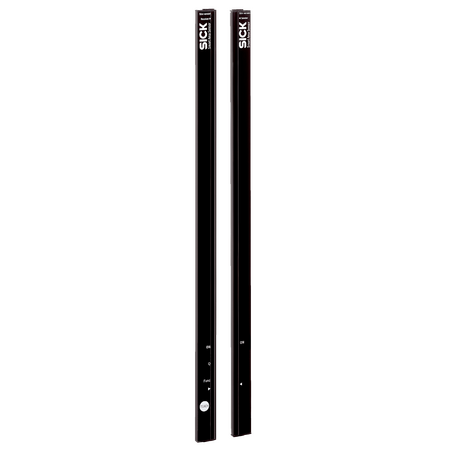

SGS4-S140P7PS2T03 Automation light grids
The SICK SGS4-S140P7PS2T03 is a high-performance automation light grid sensor featuring 36 infrared cross beams for precise object detection and safety applications
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SGS4-S140P7PS2T03 | Automation light grids
Brand: SICK
SKU: 1210782
Alternatively Known As: Automation light grid, Safety light curtain, Light barrier sensor, Industrial light grid sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm cross beam
- Number of beams: 36
- Detection height: 1,400 mm
- Beam separation: 40 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 57 ms
- Operating range: 7 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M8 male connector, 4-pin
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 1472mm x 12mm x 37mm
- Weight: 0.18 kg
Key Features
- Sender/receiver sensor principle with 36 cross beams
- Minimum detectable object size of 25 mm
- Detection height of 1,400 mm with 40 mm beam separation
- Infrared light source with 950 nm wavelength
- IP65 rated enclosure for dust and water protection
- PNP switching output with short-circuit and reverse polarity protection
- Teach-in button for easy parameterization
- Operating temperature range from -25°C to +55°C
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensors and electrical standards to ensure proper alignment and compliance with safety regulations.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Conveyor and production line monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable IP65 housing reduces need for frequent replacements
- Supports safer industrial environments reducing accident-related waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SGS4-S140P7PS2T03 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
