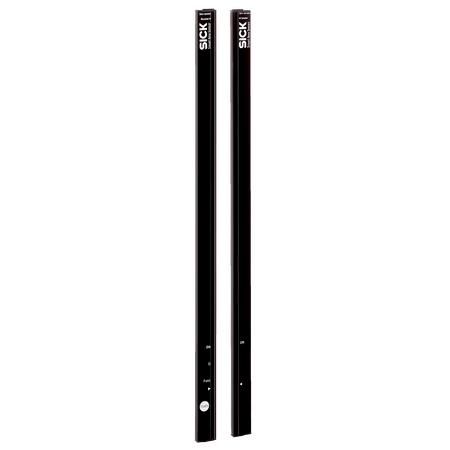

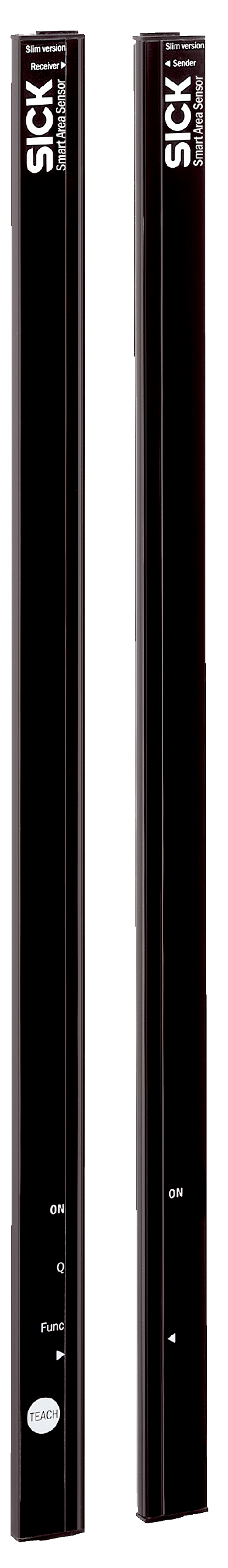

SGS4-S140P7TC1W02 | Automation light grids
The SICK SGS4-S140P7TC1W02 automation light grid sensor provides reliable object detection and safety monitoring with 36 parallel infrared beams, ideal for industrial automation and machine guarding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SGS4-S140P7TC1W02 | Automation light grids
Brand: SICK
SKU: 1213243
Alternatively Known As: Light curtain sensor, Safety light grid, Automation light barrier, Infrared safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 36
- Detection height: 1,400 mm
- Beam separation: 40 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: PNP
- Inputs: Teach-in input (receiver), Test input (sender)
- Connection type: Cable with M12 male connector, 4-pin
- Housing material: PMMA
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Maximum range: 10 m
- Operating range: 7 m
- Response time: 38 ms (parallel beam coded version)
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 100,000 lx, Indirect 150,000 lx
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 1472mm x 8mm x 25mm
- Weight: 0.18 kg
Key Features
- Sender/receiver sensor principle with 36 parallel beams
- Minimum detectable object size of 45 mm
- Detection height of 1,400 mm with 40 mm beam separation
- Infrared light source with 950 nm wavelength
- Supply voltage DC 24 V ± 20%
- Output 1 inactive when light beam is interrupted
- PNP switching output with 100 mA max output current
- Cable connection with M12 male connector, 4-pin
- Housing made of PMMA with IP65 enclosure rating
- Shock resistance 10 g and vibration resistance 5 g
- Ambient operating temperature from -25 °C to +55 °C
- EMC compliant to EN 60947-5-2
- Automatic teach and muting function deactivated
- Optical synchronization and LED indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light grid systems and electrical standards to ensure proper alignment and compliance with safety regulations.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Object detection in manufacturing lines
- Access control and personnel safety zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces need for frequent replacements
- High resistance to shock and vibration extends product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SGS4-S140P7TC1W02 automation light grid sensor is available for immediate purchase, ideal for industrial safety and automation applications.
