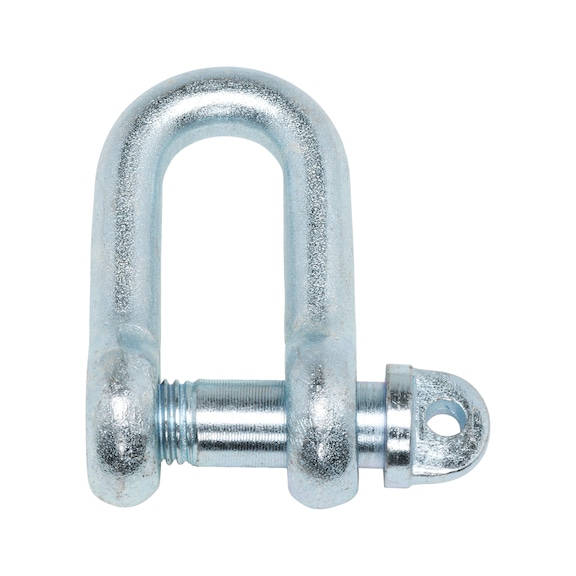

Shackle SHKL A SZ04 BT ZN | Zinc-Plated Steel | 400 kg Load Capacity | Curved Design | @Pack of 25 | by Wurth
The Shackle SHKL A SZ04 BT ZN is a robust towing shackle made from zinc-plated steel, designed to handle a load capacity of 400 kg. Its curved design makes it ideal for connecting motor vehicles and lengthening ropes and chains. Perfect for automotive and industrial applications, this shackle ensures safety and compliance with load requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shackle SHKL A SZ04 BT ZN | Zinc-Plated Steel | 400 kg Load Capacity | Curved Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 52304
Alternatively Known As: Towing shackle, Zinc plated shackle, Steel shackle, Curved shackle
Technical Specifications
- Load capacity: 400 kg
- Thread type x shackle bolt diameter: M10 mm
- Shackle internal width (b1): 14 mm
- Shackle external width (b2): 30 mm
- Shackle diameter (d1): 10 mm
- Shackle-bolt diameter (d2): 10 mm
- Internal shackle height (centre bolt) (h1): 35 mm
- Design: Curved
- Material: Steel
- Surface: Zinc plated
- Form: A
- Nominal size: 0.4
- RoHS-compliant: Yes
- Dimensions (H x L x W): 35mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Zinc-plated steel construction
- Curved design for sizes M5 to M12
- Forged design for sizes M16 to M48
- Hot-dip galvanized from M48 size
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure safety and compliance with load requirements.
Applications
- Connection element for towing motor vehicles
- Lengthening ropes and chains
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Shackle SHKL A SZ04 BT ZN PIN100 25 PCS is available now for immediate purchase. Ideal for towing and securing applications in automotive and industrial settings.
