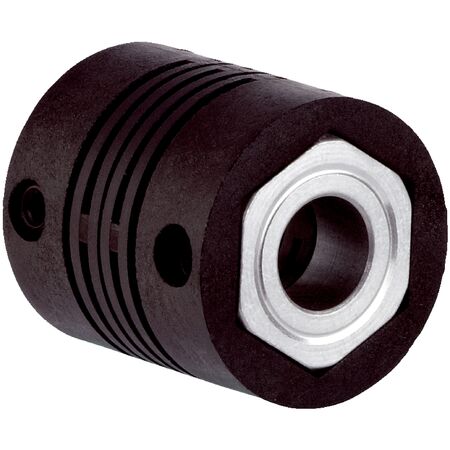

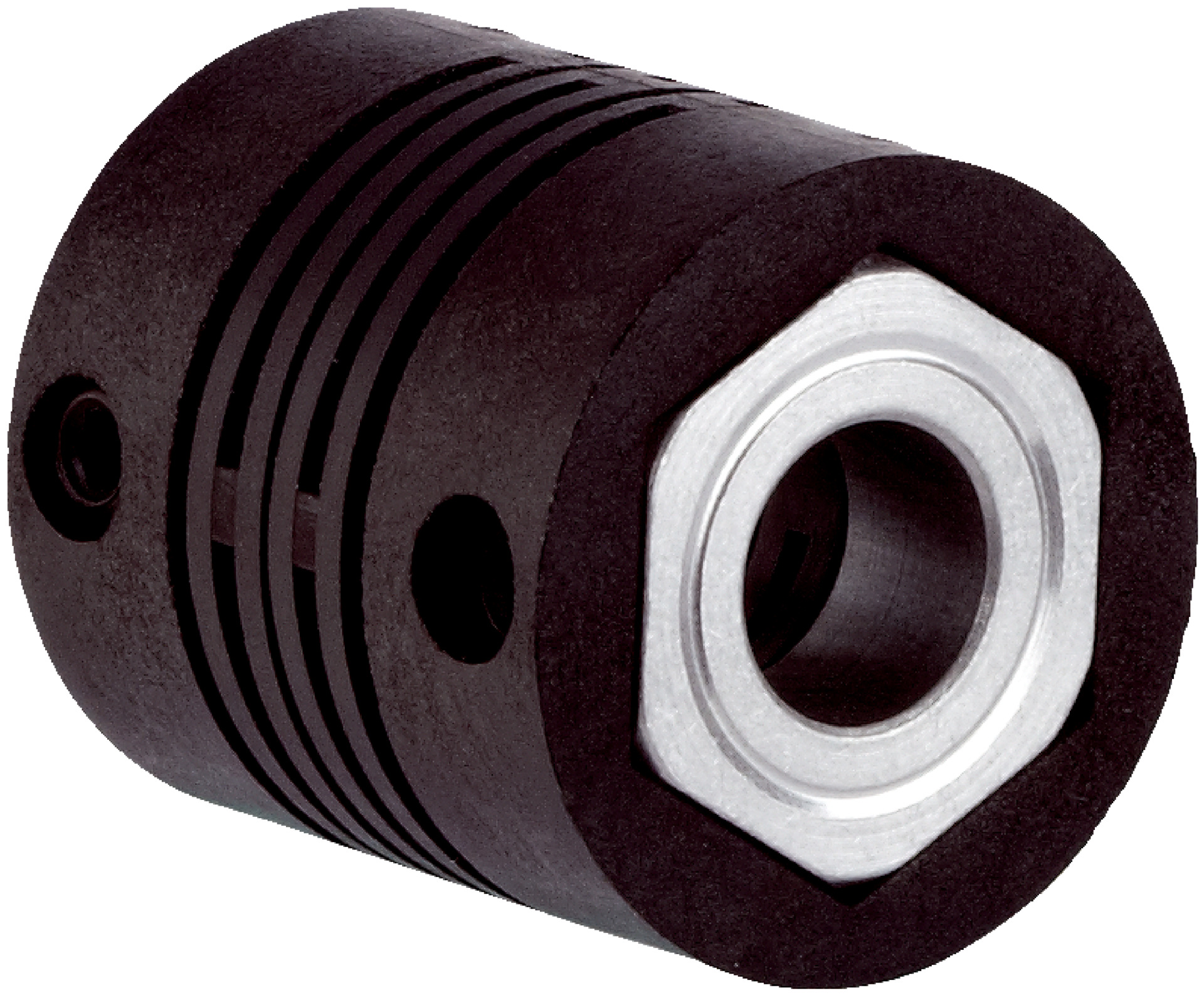

Shaft Coupling 10mm | Maximum Speed 10,000 RPM | 80 Ncm Torque | by SICK
The Shaft Coupling 10mm is engineered for precision in industrial machinery, accommodating maximum speeds of 10,000 RPM and torque up to 80 Ncm. With a robust design made from glass fiber-reinforced polyamide and an aluminum hub, it ensures reliable performance in automation equipment and mechanical power transmission applications. Ideal for professionals seeking durable and efficient shaft adaptation solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 10 mm
- Maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angular ± 3°
- Maximum speed: 10,000 rpm
- Operating temperature: -10° to +80° Celsius
- Maximum torque: 80 Ncm
- Material: Glass fiber-reinforced polyamide, aluminum hub
- Dimensions (H x L x W): 20mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Bar coupling for shaft diameter 10 mm / 10 mm
- Maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angular ± 3°
- Speed rating up to 10,000 rpm
- Operating temperature range from -10° to +80° Celsius
- Maximum torque of 80 Ncm
- Constructed from glass fiber-reinforced polyamide with aluminum hub
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission
- Automation equipment requiring precise shaft coupling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Lightweight design contributes to energy-efficient machinery operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-1010-S shaft coupling is available for immediate purchase, ideal for industrial and automation machinery requiring reliable shaft adaptation.
