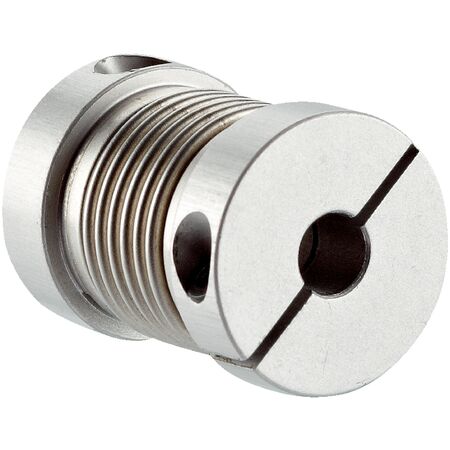

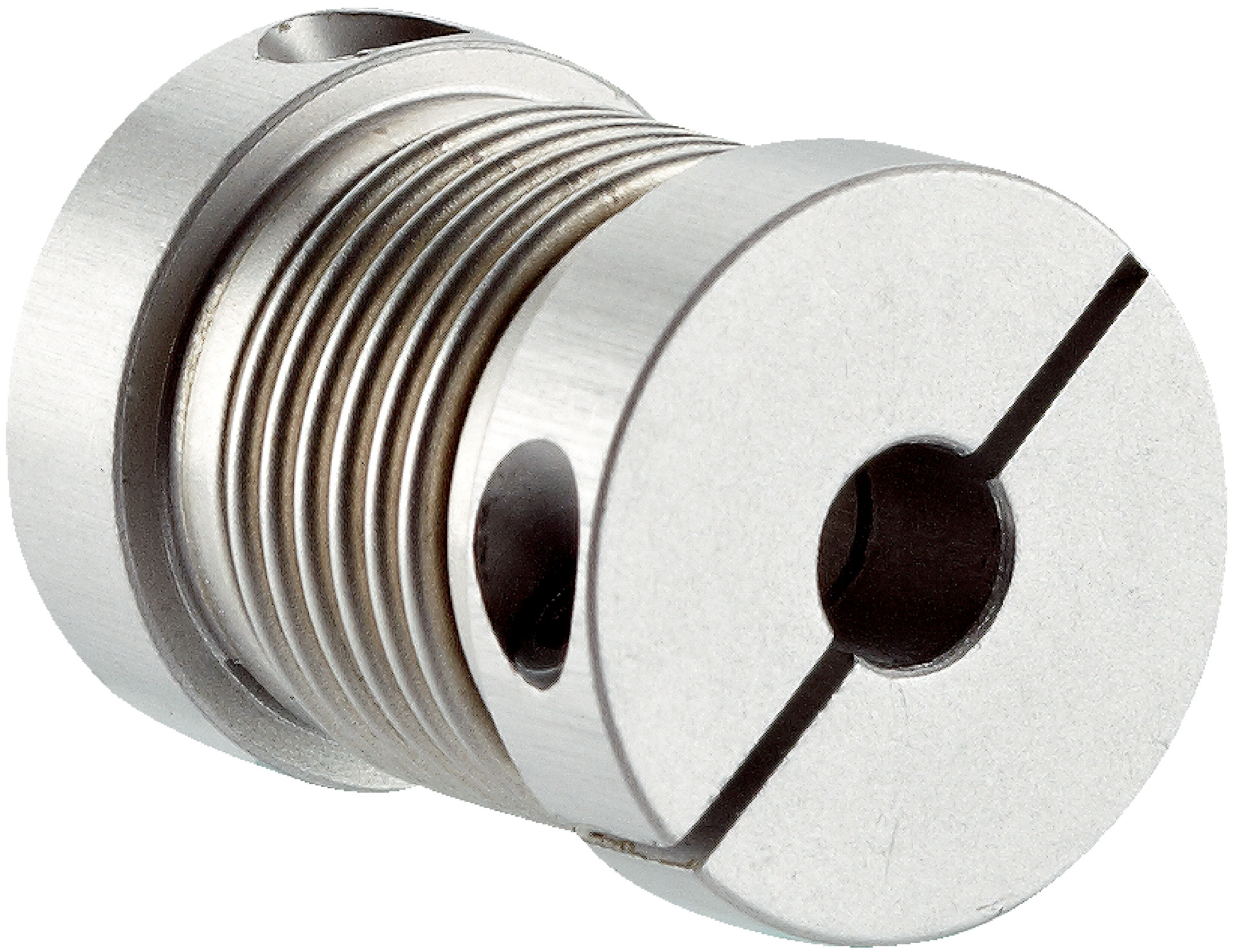

Shaft Coupling 10mm to 12mm | Stainless Steel Bellows | 10,000 RPM | by SICK

BRAND: SICK
SKU: 5312984
$116.90 List price: $146.90
+ −
30 Days Return Delivery Options
The KUP-1012-B shaft coupling is designed for 10 mm and 12 mm shafts, providing maximum torque of 120 Ncm and accommodating shaft offsets of +/- 0.25 mm radially and +/- 0.4 mm axially. Ideal for industrial machinery and automation systems, this coupling operates efficiently within a temperature range of -30° to +120 °C, ensuring reliable performance in demanding environments.
Technical Specifications
  • Shaft diameter: 10 mm / 12 mm
  • Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
  • Maximum rotational speed: 10,000 rpm
  • Operating temperature range: -30° to +120 °C
  • Maximum torque: 120 Ncm
  • Material: stainless steel bellows, aluminum clamping hubs
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Shaft coupling for 10 mm and 12 mm shafts
  • Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
  • Maximum revolutions: 10,000 rpm
  • Operating temperature range: -30° to +120 °C
  • Maximum torque: 120 Ncm
  • Constructed with stainless steel bellows and aluminum clamping hubs
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper alignment and secure clamping for optimal performance.
Applications
  • Industrial machinery shaft adaptation
  • Mechanical power transmission systems
  • Automation and control equipment
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Efficient torque transmission reduces energy loss
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-1012-B shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
