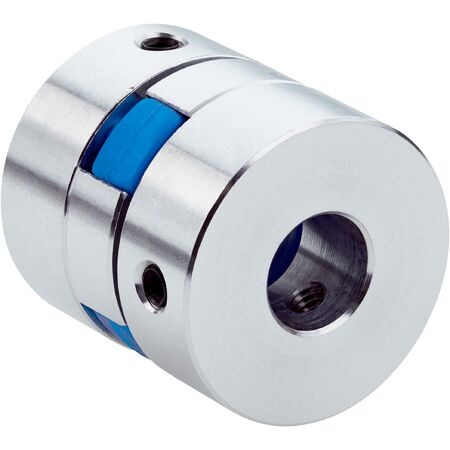

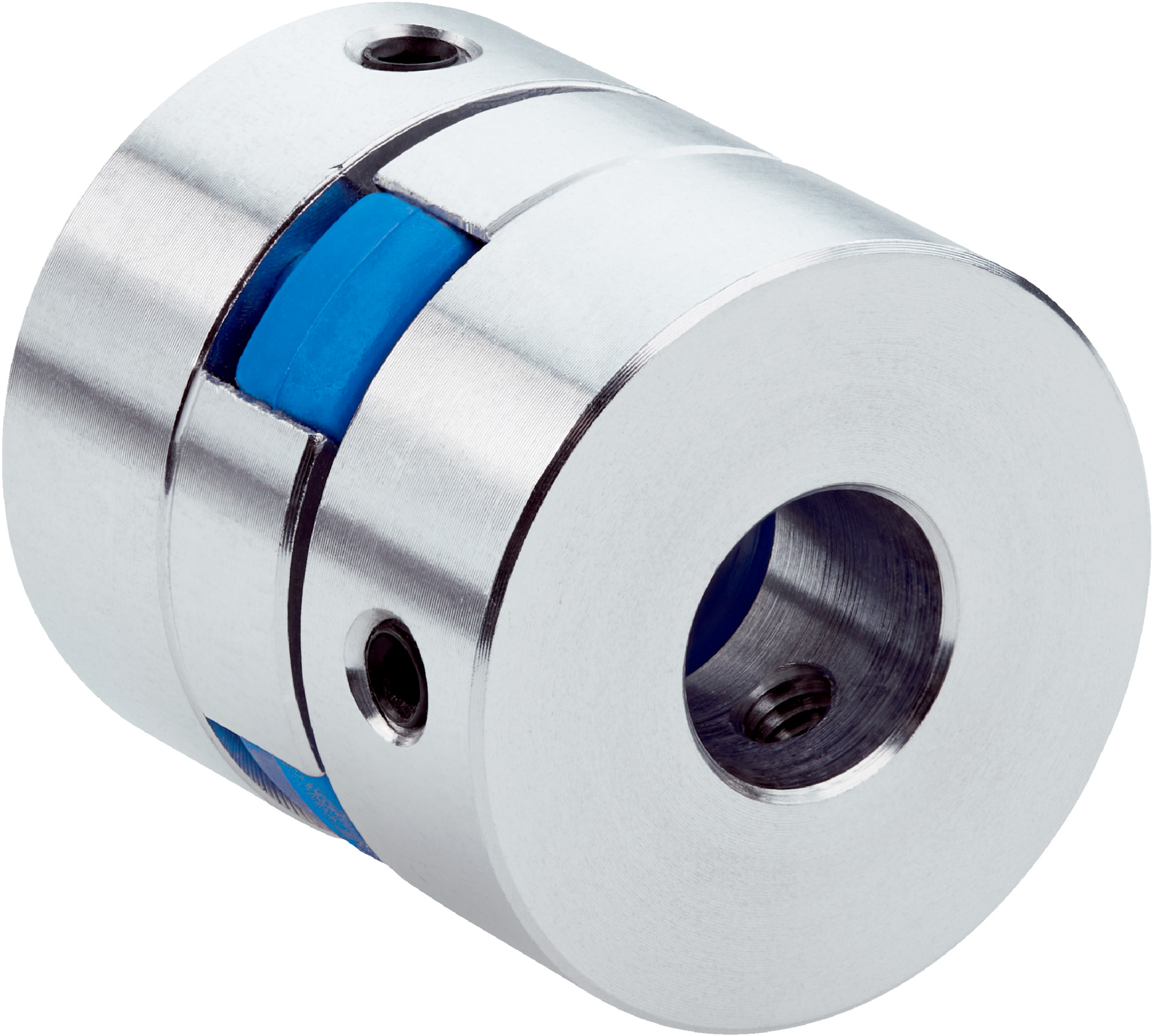

Shaft Coupling 10mm Claw Design | 80 Shore Polyurethane Damping | 19,000 RPM Max Speed | by SICK
The KUP-1010-J shaft coupling features a claw design for secure connections, with a 10mm shaft diameter and 80 shore blue polyurethane damping for optimal performance. Ideal for industrial machinery and automation equipment, it supports maximum speeds of 19,000 RPM and accommodates shaft offsets of ±0.22 mm radially and ±1 mm axially, ensuring precise alignment and durability in high-speed applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 10 mm
- Damping element hardness: 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed: 19,000 rpm
- Maximum angle of twist: 10°
- Operating temperature range: -30 °C to +80 °C
- Maximum torque: 800 Ncm
- Tightening torque of screws: ISO 4029 150 Ncm
- Material: Aluminum flange with polyurethane damping element
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Claw coupling design for secure shaft connection
- Shaft diameter 10 mm / 10 mm
- Damping element made of 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed up to 19,000 rpm
- Maximum angle of twist 10°
- Operating temperature range from -30 °C to +80 °C
- Maximum torque 800 Ncm
- Tightening torque of screws per ISO 4029: 150 Ncm
- Aluminum flange material for durability
Professional Installation Requirements
- Installation by qualified mechanical or maintenance personnel is recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft connections
- Automation equipment requiring precise shaft adaptation
- Mechanical drive systems with high-speed rotation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum and polyurethane materials reduce replacement frequency and waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-1010-J claw shaft coupling is available for immediate purchase, ideal for industrial and automation shaft connection applications.
