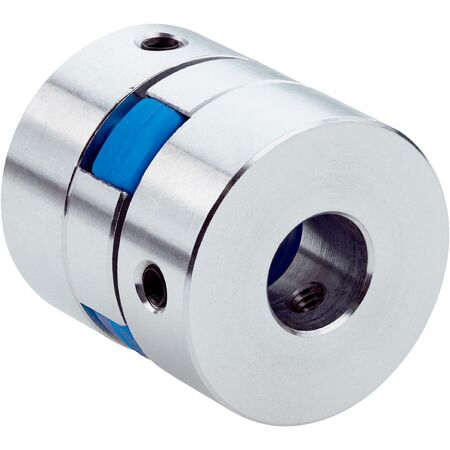

Shaft Coupling 10mm Claw Design 80 Shore Polyurethane Damping 19,000 RPM Max Speed SICK

BRAND: SICK
SKU: 2127054
$171.50 List price: $215.60
+ −
30 Days Return Electricians Unlock Trade Access
The KUP-1010-J shaft coupling features a claw design for secure connections, with a 10mm shaft diameter and 80 shore blue polyurethane damping for optimal
Technical Specifications
  • Shaft diameter: 10 mm / 10 mm
  • Damping element hardness: 80 shore blue polyurethane
  • Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
  • Maximum speed: 19,000 rpm
  • Maximum angle of twist: 10°
  • Operating temperature range: -30 °C to +80 °C
  • Maximum torque: 800 Ncm
  • Tightening torque of screws: ISO 4029 150 Ncm
  • Material: Aluminum flange with polyurethane damping element
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Claw coupling design for secure shaft connection
  • Shaft diameter 10 mm / 10 mm
  • Damping element made of 80 shore blue polyurethane
  • Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
  • Maximum speed up to 19,000 rpm
  • Maximum angle of twist 10°
  • Operating temperature range from -30 °C to +80 °C
  • Maximum torque 800 Ncm
  • Tightening torque of screws per ISO 4029: 150 Ncm
  • Aluminum flange material for durability
Professional Installation Requirements
  • Installation by qualified mechanical or maintenance personnel is recommended to ensure proper alignment and torque settings.
Applications
  • Industrial machinery shaft connections
  • Automation equipment requiring precise shaft adaptation
  • Mechanical drive systems with high-speed rotation
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable aluminum and polyurethane materials reduce replacement frequency and waste
  • RoHS compliant, ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-1010-J claw shaft coupling is available for immediate purchase, ideal for industrial and automation shaft connection applications.
