Shaft Coupling 6mm Claw Design 19,000 RPM Max Speed 800 Ncm Torque SICK

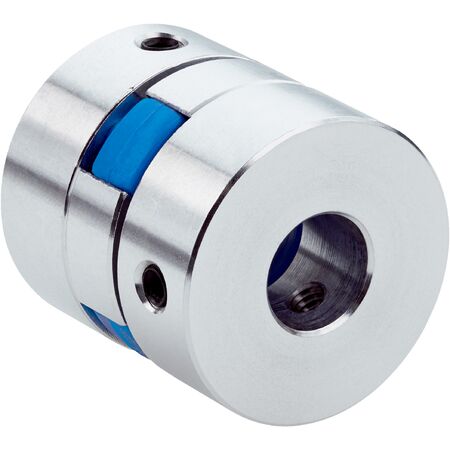

The KUP-0606-J shaft coupling features a reliable claw design with a 6mm diameter, capable of handling maximum speeds up to 19,000 RPM and torque of 800 Ncm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Damping element hardness: 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed: 19,000 rpm
- Maximum torque: 800 Ncm
- Operating temperature range: -30 °C to +80 °C
- Material: Aluminum flange with polyurethane damping element
- Tightening torque of screws: ISO 4029 150 Ncm
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Claw coupling design for reliable shaft connection
- Shaft diameter 6 mm / 6 mm
- Damping element made of 80 shore blue polyurethane
- Maximum shaft offset: radial ±0.22 mm, axial ±1 mm, angular ±1.3°
- Maximum speed up to 19,000 rpm
- Maximum torque 800 Ncm
- Operating temperature range from -30 °C to +80 °C
- Aluminum flange material for durability
- Tightening torque of screws according to ISO 4029: 150 Ncm
Professional Installation Requirements
- Installation by qualified mechanical technicians is recommended to ensure proper shaft alignment and torque settings.
Applications
- Mechanical power transmission
- Shaft adaptation in industrial machinery
- Automation and robotics systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-0606-J claw shaft coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
